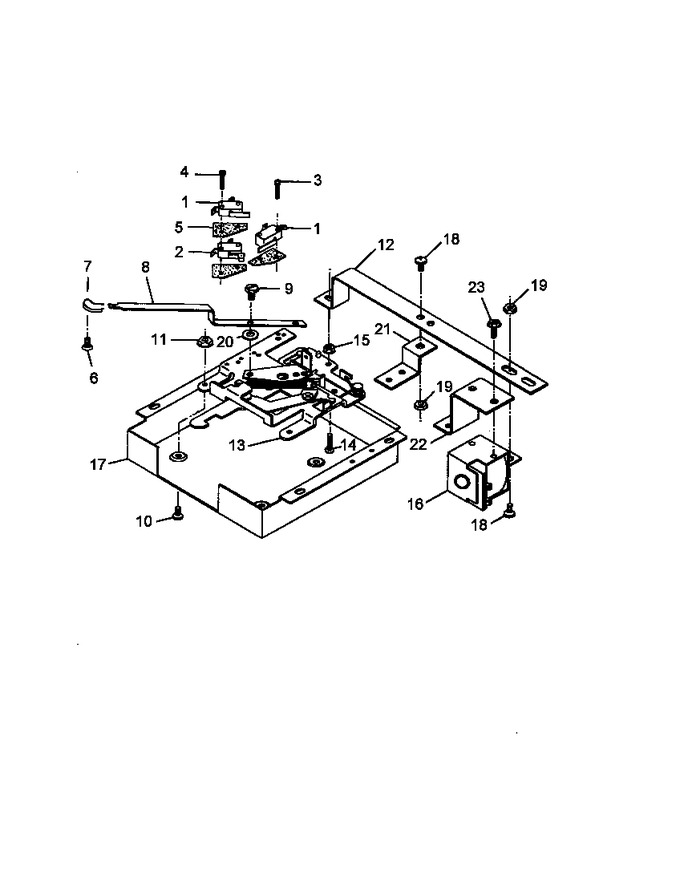

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0042052		Switch, Clean, Primary Interl		Appelez-nous	-
2	0314096		Switch, Momentary		Appelez-nous	-
3	Y0041826		Screw 4 X 40x.500 Dyro T (blk)		Appelez-nous	-
4	Y0041821		Screw 4-40x15/16``		Appelez-nous	-
5	Y0091523		Insulation, Esm		Appelez-nous	-
6	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
7	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
8	303039W		Latch Arm		Appelez-nous	-
9	0041780		Screw 10-24		Appelez-nous	-
10	WP4159193		Screw, No.10-24x1/4 (pan Ph Hd)   (Replaces: Y0041765)				$ 4.29
11	M0282009		Nut   (Replaces: Y0097885)				$ 12.06
12	Y0315542		Lever, Solenoid		Appelez-nous	-
13	Y0041909		Door Latch Assy Wo		Appelez-nous	-
14	0041773		Screw 6 32x1 Slotted Rn Brass		Appelez-nous	-
14	31750005		Washer, Flat 1/4 X 5/8 O.d.		Appelez-nous	-
15	0315543		Ring, Retainer		Appelez-nous	-
16	Y0042049		Solenoid Eaton Pyro Th Wo		Appelez-nous	-
17	0060840		Bracket, Door Latch		Appelez-nous	-
18	Y0060923		Shoulder Screw		Appelez-nous	-
19	WP486255		Nut, Lock   (Replaces: Y0060922)				$ 5.54
20	31750002		Washer, Steel (1/4 X 9/16)		Appelez-nous	-
21	Y0060831		Bracket, Solenoid Lever		Appelez-nous	-
22	Y0060830		Bracket, Solenoid		Appelez-nous	-
23	0041774		Screw 10-32 X.250 Hex		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
