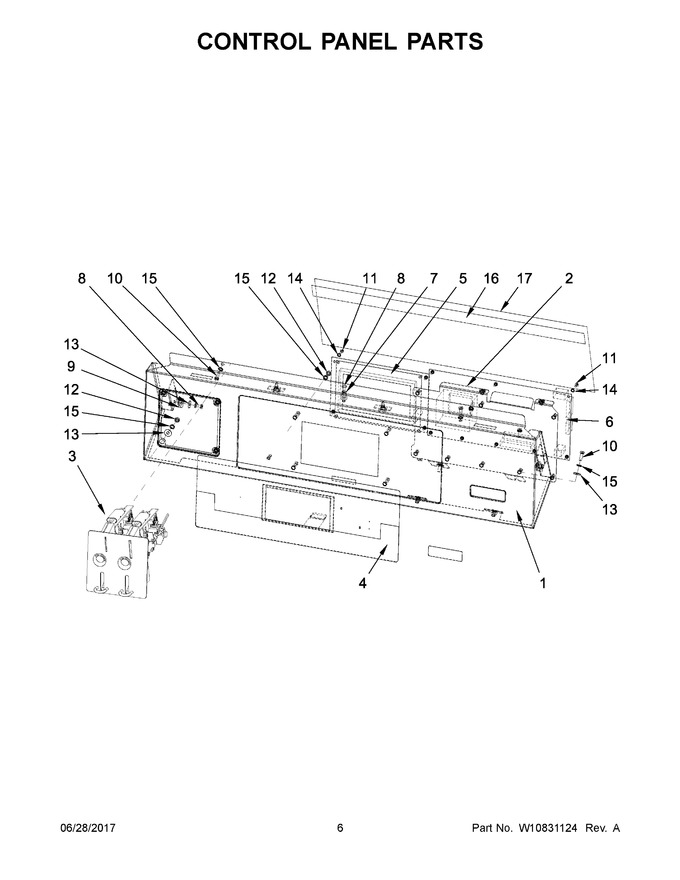

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725448		Control Panel		Appelez-nous	-
2	W10725459		Control Board Bracket		Appelez-nous	-
3	W10712245		Coin Drop (.25 Cent)		Appelez-nous	-
4	W10725464		Keypad Mc7 Ac (pd)		Appelez-nous	-
5	W10712233		Display Board - Cpu		Appelez-nous	-
6	W10712234		Main Control Board Mc7		Appelez-nous	-
7	W10711787		Insert, Rivet		Appelez-nous	-
8	W10711789		Rivet W/crank (4x16)		Appelez-nous	-
9	W10725468		Leading Pin		Appelez-nous	-
10	W10712243		Bolt M4x12		Appelez-nous	-
11	23002869		Bolt M3x6		Appelez-nous	-
12	23003666		Nut M4		Appelez-nous	-
13	23001545		Washer M4		Appelez-nous	-
14	23002865		Washer, Lock M4		Appelez-nous	-
15	23002950		Washer, Lock M4		Appelez-nous	-
16	23004126		Double-sided Tape		Appelez-nous	-
17	23002877		Shield, Rain		Appelez-nous	-
NI	W10712236		Wiring Harness, Main Control To Display Board		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
