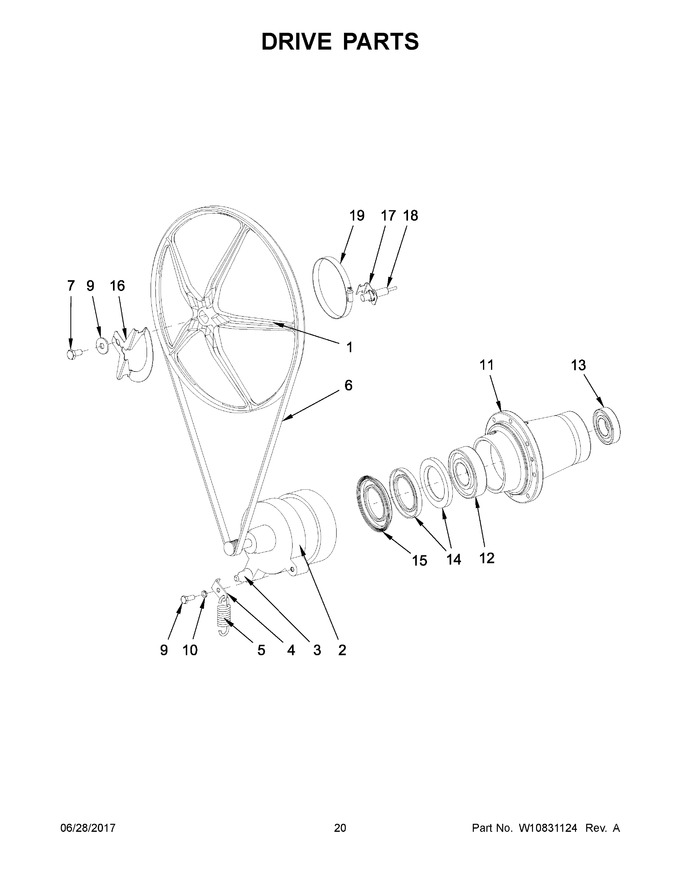

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10713992		Pulley, Drum		Appelez-nous	-
2	W10725724		Motor		Appelez-nous	-
3	23004307		Bushing Rubber, Motor		Appelez-nous	-
4	W10725727		Spring Holder		Appelez-nous	-
5	23004156		Spring, Tension		Appelez-nous	-
6	W10713980		Belt		Appelez-nous	-
7	23002648		Bolt M10x20		Appelez-nous	-
8	23004310		Bolt 5/16 X 1 1/4		Appelez-nous	-
9	23004023		Washer M10		Appelez-nous	-
10	23001265		Washer M8		Appelez-nous	-
11	W10725784		Bearing Housing		Appelez-nous	-
12	23001231		Bearing (6209 2rs C3)		Appelez-nous	-
13	23001232		Bearing (6207)		Appelez-nous	-
14	W10714022		Ring Seal 65x100x10		Appelez-nous	-
15	W10714025		Ring Seal 65x100/114x9/12		Appelez-nous	-
16	W10747775		Plate, Speed Sensor		Appelez-nous	-
17	W10747779		Bracket, Speed Sensor		Appelez-nous	-
18	W10747780		Speed Sensor		Appelez-nous	-
19	WP696392		Hose Clamp (90-110)   (Replaces: 23001025)				$ 7.31
NI	W10725729		Motor Wiring		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
