01 - Cover Sheet
02 - Cooktop Parts

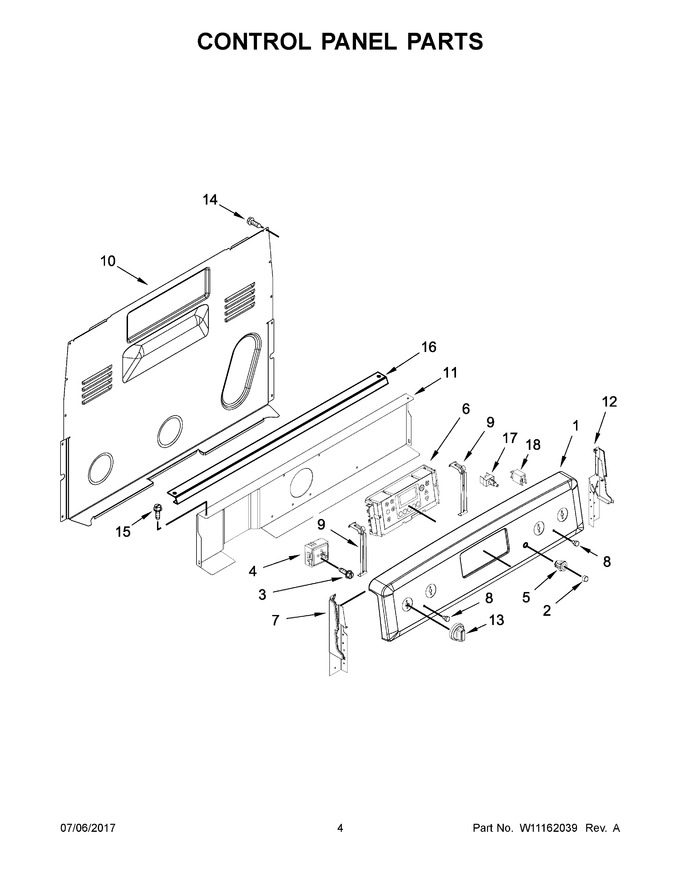

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10655844 | Console (stainless) |
|
- | |||||
| 2 | W10918209 | Button, Keep Warm (grey) (Replaces: W10315961) |
|
$ 17.33 | |||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 47.15 | ||||
| 5 | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 6 | WPW10655845 | Control (stainless) (Replaces: W10655845) |
|
$ 235.79 | |||||
| 7 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 72.69 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 12 | W11219665 | Endcap (black (left)) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 13 | WPW10666901 | Knob (stainless) (Replaces: W10666901) |
|
$ 133.67 | |||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 16 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 17 | WP8272820 | Switch, Warm Zone (Replaces: 8272820) |
|
$ 153.35 | |||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 77.68 | ||||
| 4A | WPW10434452 | Switch, Infinite (dual) (left Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 4B | WPW10411934 | Switch, Infinite (right Front) (Replaces: W10411934) |
|
Immediately | $ 98.45 |
