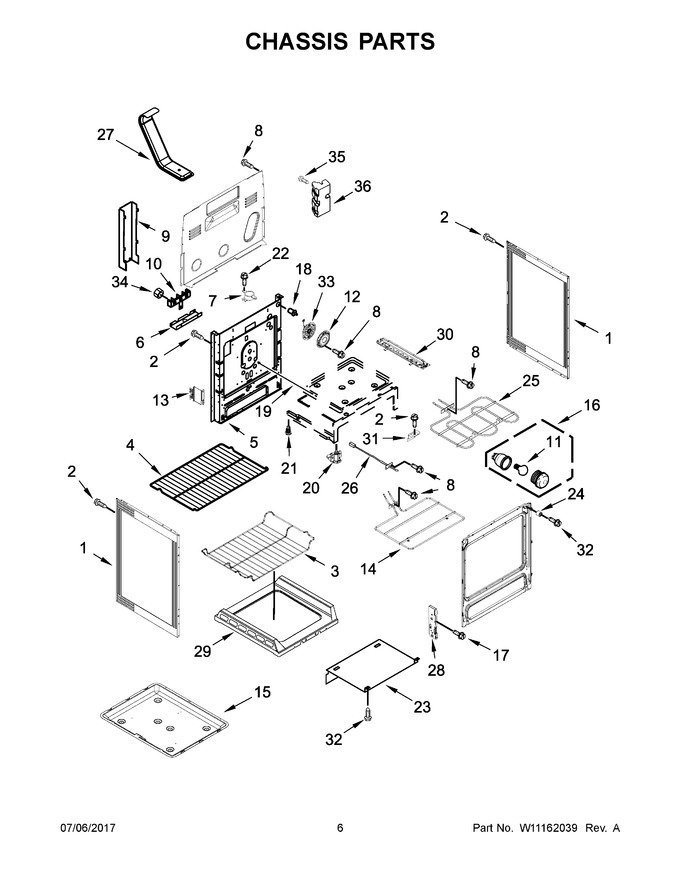

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 148.35 | ||||
| 2 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 3 | W11256463 | Rack, Oven (gull-wing) (Replaces: W10289145) |
|
Immediately | $ 119.25 | ||||
| 4 | WPW10531060 | Rack, Oven (Replaces: W10531060) |
|
Immediately | $ 109.94 | ||||
| 5 | N/P | Back, Main (not Serviced) |
|
- | |||||
| 6 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 7 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 42.94 | ||||
| 8 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 9 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 119.66 | |||||
| 10 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 31.65 | ||||
| 11 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 12 | WPW10346154 | Cover, Convection (Replaces: W10346154) |
|
Immediately | $ 66.57 | ||||
| 13 | W10273002 | Bracket, Oven Support |
|
$ 65.43 | |||||
| 14 | W10779716 | Element, Bake (Replaces: W10774342) |
|
Immediately | $ 55.31 | ||||
| 15 | W11379357 | Pan, Bake (Replaces: W10346147) |
|
Immediately | $ 71.02 | ||||
| 16 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 78.31 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 18 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 130.00 | ||||
| 19 | W11370463 | Rod, Door Switch (Replaces: W10273192) |
|
Immediately | $ 57.32 | ||||
| 20 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 21 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 22 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 23 | W10726740 | Shield, Heat |
|
$ 124.31 | |||||
| 24 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 48.05 | ||||
| 25 | W11321472 | Element, Broil (Replaces: W10544951) |
|
Immediately | $ 101.29 | ||||
| 26 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 126.64 | ||||
| 27 | WPW10134285 | Tube, Vent (Replaces: W10134285) |
|
Immediately | $ 225.43 | ||||
| 28 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 29 | W10777210 | Bottom, Oven (Replaces: W10774446) |
|
Immediately | $ 147.80 | ||||
| 30 | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 53.71 | |||||
| 31 | W10035900 | Support, Oven Bottom |
|
$ 12.31 | |||||
| 32 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 33 | W11527111 | Fan, Convection (Replaces: W10617485) |
|
Immediately | $ 141.23 | ||||
| 34 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 6.98 | ||||
| 35 | W11135752 | Counterweight (Replaces: W10910404) |
|
Immediately | $ 131.81 | ||||
| 36 | W11135756 | Screw (Replaces: W11034869) |
|
$ 12.63 | |||||
| 30A | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 53.71 | |||||
| NI | 4820F015-59 | Insulation, Strap |
|
$ 8.39 | |||||
| NI | WPW10225524 | Insulation, Back (Replaces: W10225524) |
|
$ 98.30 | |||||
| NI | WPW10225523 | Insulation, Bottom (Replaces: W10225523) |
|
$ 103.07 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 7.61 | |||||
| NI | WPW10194393 | Insulation, Wrap (Replaces: W10194393) |
|
$ 110.70 |
