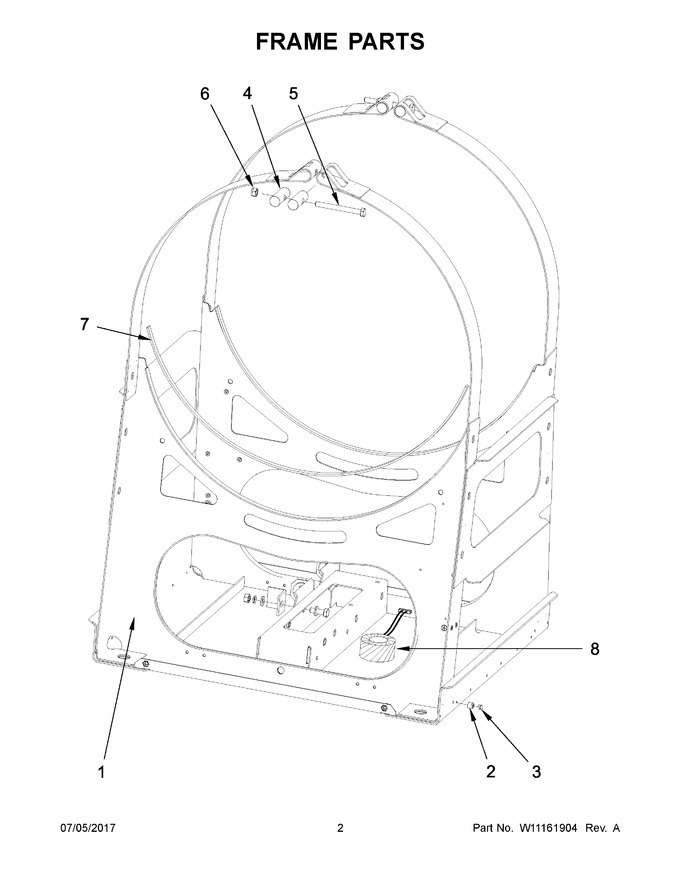

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10725150 | Frame |
|
- | |||||
| 2 | W10711787 | Insert, Rivet |
|
- | |||||
| 3 | W10711789 | Rivet W/crank (4x16) |
|
- | |||||
| 4 | W10711702 | Cover Strip Pin |
|
- | |||||
| 5 | 23003064 | Bolt M8x80 |
|
- | |||||
| 6 | 23001607 | Nut M8 |
|
- | |||||
| 7 | W10711718 | Self-adhesive Foam Seal |
|
- | |||||
| 8 | W11159624 | Transformer, Step Up (120vac-240vac) |
|
- |
