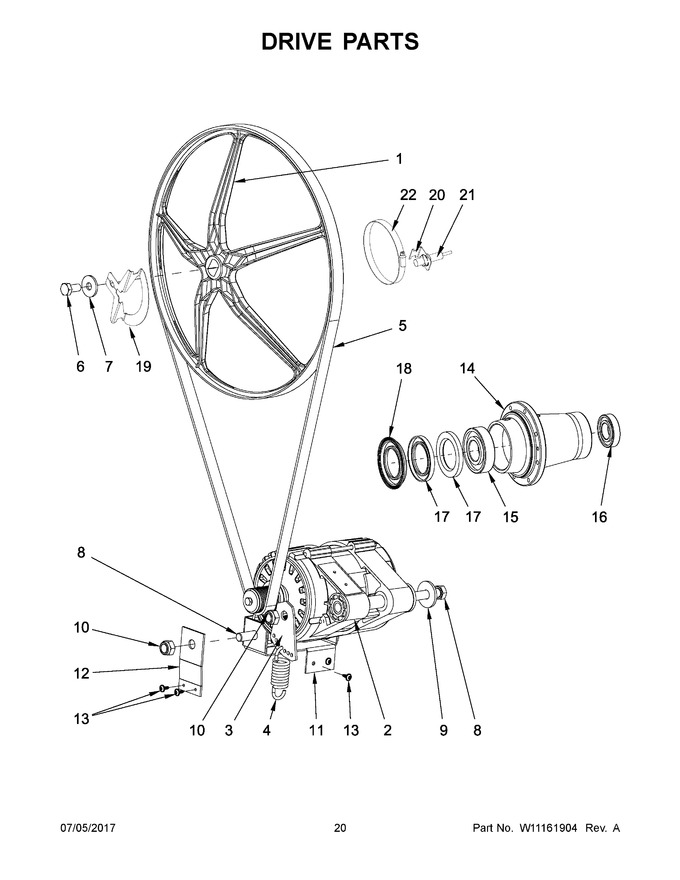

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 23004308 | V-pulley Drum |
|
$ 247.79 | |||||
| 2 | W10725743 | Motor |
|
- | |||||
| 3 | W10725749 | Spring Holder |
|
- | |||||
| 4 | 23004156 | Spring, Tension |
|
- | |||||
| 5 | W10713981 | Belt |
|
- | |||||
| 6 | 23002648 | Bolt M10x20 |
|
- | |||||
| 7 | 23004023 | Washer M10 |
|
- | |||||
| 8 | W10713997 | Bolt M12x180 |
|
- | |||||
| 9 | 23004146 | Washer M12 |
|
- | |||||
| 10 | W10357141 | Nut M12 |
|
- | |||||
| 11 | W10725764 | Motor Holder |
|
- | |||||
| 12 | W10725776 | Holder |
|
- | |||||
| 13 | W10711800 | Screw M4x11 |
|
- | |||||
| 14 | W10725785 | Bearing Housing |
|
- | |||||
| 15 | 23003615 | Bearing (6309) |
|
- | |||||
| 16 | 23004032 | Bearing (6307) |
|
- | |||||
| 17 | W10714022 | Ring Seal 65x100x10 |
|
- | |||||
| 18 | W10714025 | Ring Seal 65x100/114x9/12 |
|
- | |||||
| 19 | W10747775 | Plate, Speed Sensor |
|
- | |||||
| 20 | W10747779 | Bracket, Speed Sensor |
|
- | |||||
| 21 | W10747780 | Speed Sensor |
|
- | |||||
| 22 | W10748073 | Hose Clamp (100-120) |
|
- |
