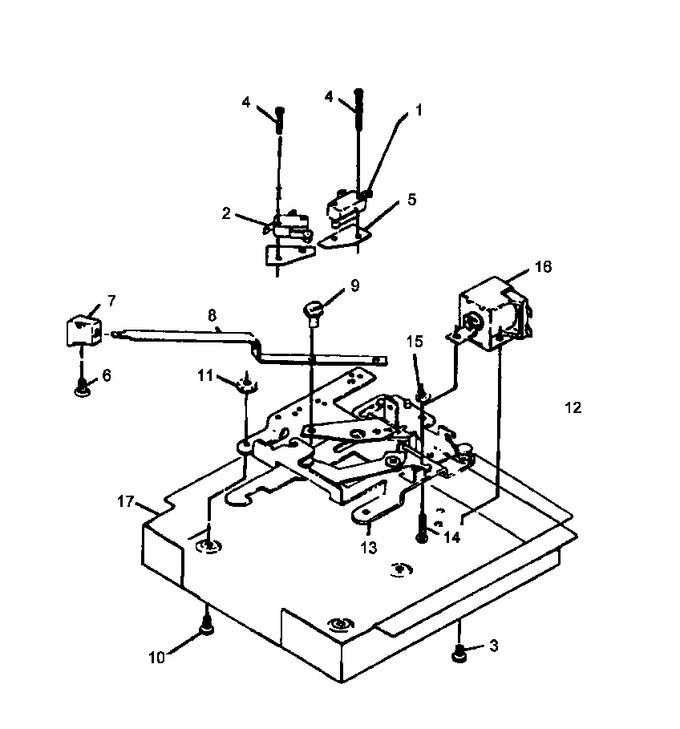

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0042052		Switch, Clean, Primary Interl		Appelez-nous	-
2	0314096		Switch, Momentary		Appelez-nous	-
3	0041774		Screw 10-32 X.250 Hex		Appelez-nous	-
4	Y0041826		Screw 4 X 40x.500 Dyro T (blk)		Appelez-nous	-
5	Y0091523		Insulation, Esm		Appelez-nous	-
6	0041774		Screw 10-32 X.250 Hex		Appelez-nous	-
7	306830W		Knob, Latch Handle (wht)		Appelez-nous	-
8	303039W		Latch Arm		Appelez-nous	-
9	Y0078780		Screw Latch Arm Mounting		Appelez-nous	-
10	WP4159193		Screw, No.10-24x1/4 (pan Ph Hd)   (Replaces: Y0041765)				$ 4.29
11	M0282009		Nut   (Replaces: 31750117)				$ 12.06
12	Y00000000		See Note Not Used		Appelez-nous	-
13	Y0041909		Door Latch Assy Wo		Appelez-nous	-
14	31750301		Screw No.6-32 X 1.00 Plain		Appelez-nous	-
15	M0282005		Nut, Hex Keps No.6-32   (Replaces: 31750119)				$ 7.07
16	Y0042049		Solenoid Eaton Pyro Th Wo		Appelez-nous	-
17	Y0040903		Latch Mtg. Brkt Pyro W/o		Appelez-nous	-
