01 - Cabinet
02 - Control Compartment
03 - Control Panel
04 - Door Latch
05 - Oven Components
06 - Oven Door
07 - Trim
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

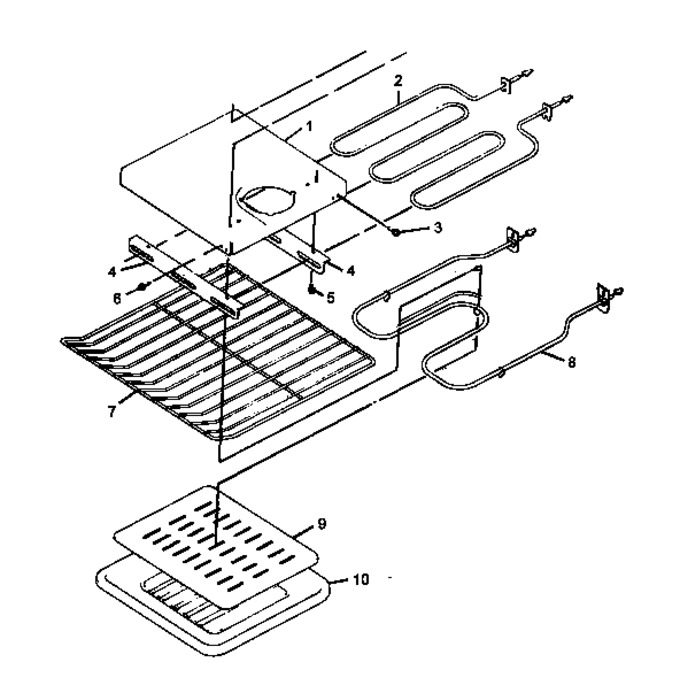

| 1 | Y0306503 | Reflector, Broil Element |
|
- | |||||
| 2 | Y0042138 | Element, Broil (240v-2800w) |
|
- | |||||
| 3 | Y0309016 | Screw, No.8-18 X 3/8 P Hex Wsh T |
|
- | |||||
| 4 | Y0040902 | Broil Element Support Pyro |
|
- | |||||
| 5 | Y0309016 | Screw, No.8-18 X 3/8 P Hex Wsh T |
|
- | |||||
| 6 | Y0309016 | Screw, No.8-18 X 3/8 P Hex Wsh T |
|
- | |||||
| 7 | 314762J | Rack, Oven 19 3/16`` X 16 1/2`` |
|
- | |||||
| 8 | WP77001092 | Element, Bake (240v-2800w) (Replaces: Y0042137) |
|
$ 130.93 | |||||
| 9 | 4396923 | Grid, Broiler (cg) (Replaces: 304451CG) |
|
Immediately | $ 52.04 | ||||
| 10 | 4396923 | Pan, Broiler (cg) (Replaces: 314175CG) |
|
Immediately | $ 52.04 |
