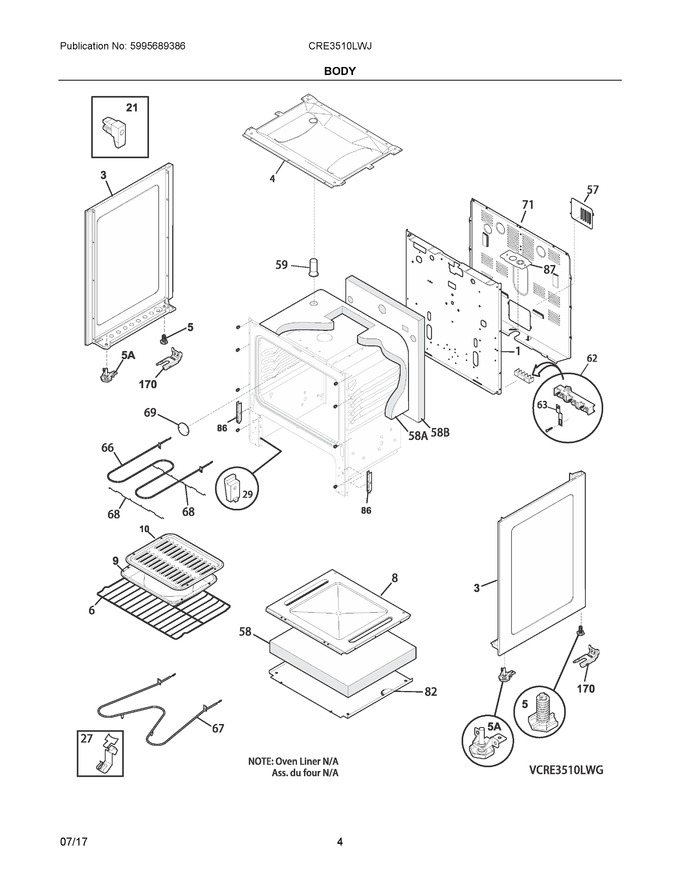

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080805		Panel, Main Back, Dipped, Black, Short		Appelez-nous	-
3	316400142		Panel, Bodyside, White, Rh   (Replaces: 316400116)				$ 140.85
4	316210103		Burner Box		Appelez-nous	-
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316067902		Rack, Oven, (2)			Immediately	$ 103.10
8	316495903		Panel,, Oven Bottom				$ 108.68
9	316081900		Pan, Broileroptional Access0ry				$ 65.89
10	316082000		Insert, Broiler Panoptional Access0ry				$ 68.85
21	316408000		Clip, Bodyside				$ 18.20
27	5303284616		Clip, Thermo Bulb Mtg				$ 9.86
29	807047102		Glide, Drawer, Front   (Replaces: 316407301)			Immediately	$ 23.82
57	316457801		Cover, Access				$ 12.89
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073601		Tube, Oven Vent		Appelez-nous	-
62	5303935271		Terminal Block Kit				$ 73.56
63	316542600		Plate, Grounding Strap		Appelez-nous	-
66	316203200		Element, Broil			Immediately	$ 164.45
67	316075103		Element, Bake			Immediately	$ 42.36
68	316203400		Support, Broil Element				$ 70.88
69	3051218		Plate, Oven Light		Appelez-nous	-
71	316422305		Shield, Rear Wall				$ 99.49
82	5303289913		Shield, Insulation		Appelez-nous	-
86	316441300		Receptacle, Hinge				$ 21.97
87	316081200		Bracket, Cable Mtg		Appelez-nous	-
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 18.91
3A	316400143		Panel, Bodyside, White, Lh   (Replaces: 316400117)				$ 140.85
58A	316047707		Insulation, 1", Oven Wrapper				$ 150.92
58B	316054202		Insulation, 1", Oven Back				$ 76.59
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
NI	316256200		Plug, Button, Oven Button		Appelez-nous	-
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316089501		Screw, 10-16		Appelez-nous	-
NI	316580004		Harness, Wiring, Main		Appelez-nous	-
NI	3051367		Clip, Wire		Appelez-nous	-
NI	316427400		Plate, Weight, (3)		Appelez-nous	-
NI	316210800		Plug, Hole, Light Switch				$ 10.63
NI	316246400		Plug, Button, Oven Probe		Appelez-nous	-
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316248900		Spacer, Shield, Rear Wall		Appelez-nous	-
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-
