SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

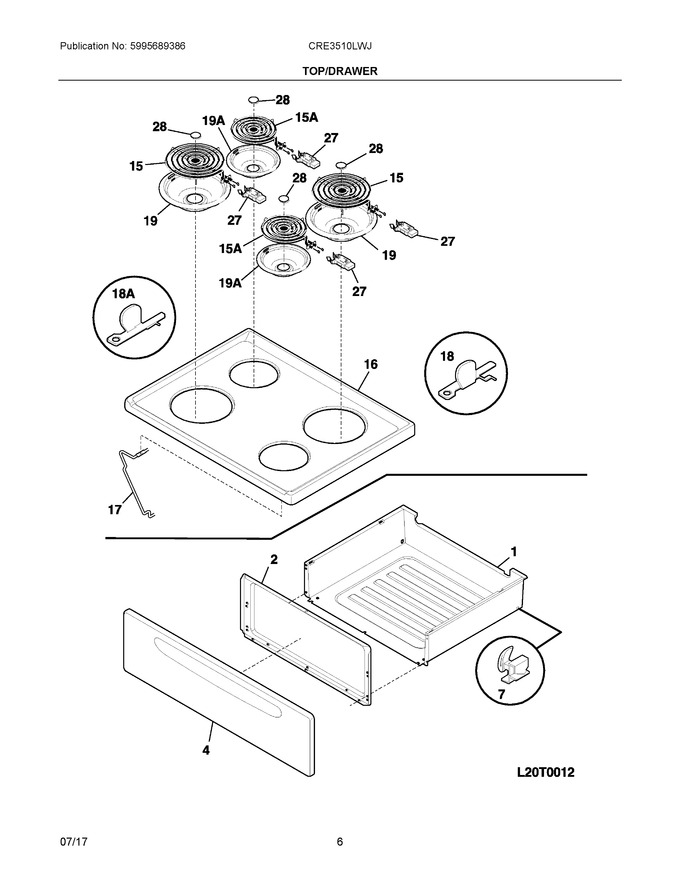

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	316403519		Panel, Drawer Front, White				$ 72.45
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
15	316442300		Element, Surface, 8", Large   (Replaces: 318372213)			Immediately	$ 59.16
16	316245402		Main Top, White				$ 478.49
17	316066900		Rod, Maintop Support				$ 66.31
18	08067747		Bracket, Hinge, Main Top Rh		Appelez-nous	-
19	316048413		Pan-surface Element, Chrome, Large/8 Inch			Immediately	$ 9.85
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion, 1 1/2"dia, Black, Surface Element				$ 64.46
15A	318372210		Element, Surface, 6", Small			Immediately	$ 20.21
18A	08067746		Bracket, Hinge, Main Top Lh		Appelez-nous	-
19A	316048414		Pan-surface Element, Chrome, Small/6 Inch			Immediately	$ 16.11
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316580405		Harness, Wiring, Surface Units		Appelez-nous	-
NI	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 11.34
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
