SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts

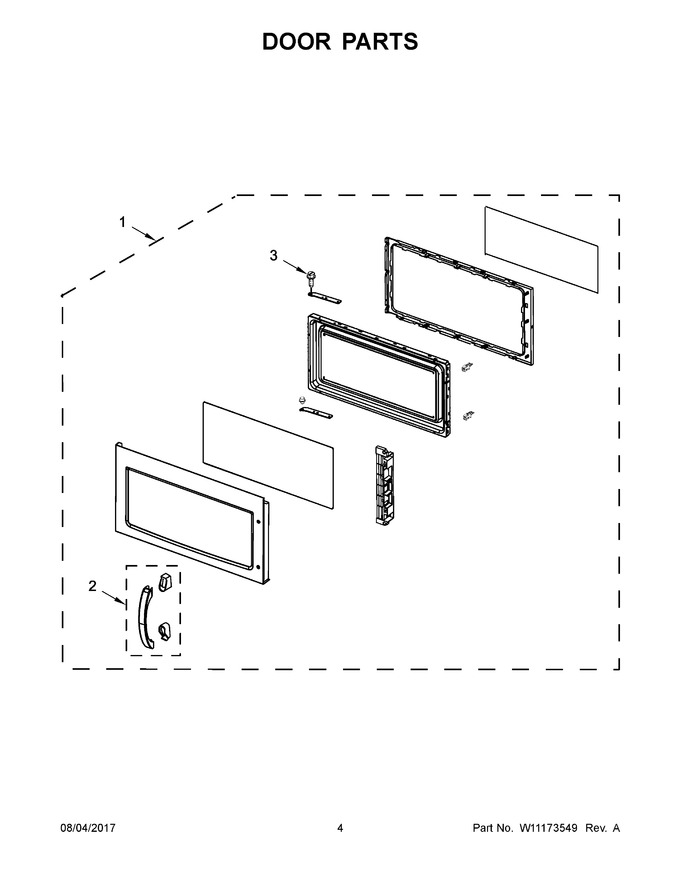

03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10286831 | Complete Door (white) |
|
$ 296.15 | |||||
| 2 | W10259244 | Handle (white) |
|
$ 166.58 | |||||
| 3 | W10138802 | Screw |
|
$ 9.80 | |||||
| 1A | W10286830 | Complete Door (black) |
|
$ 324.72 | |||||
| 1B | W10286832 | Complete Door (stainless) |
|
$ 315.69 | |||||
| 2A | W10259243 | Handle (black) |
|
$ 190.29 | |||||
| 2B | W10259246 | Handle (stainless) |
|
$ 168.86 |
