SELECT A DIAGRAM

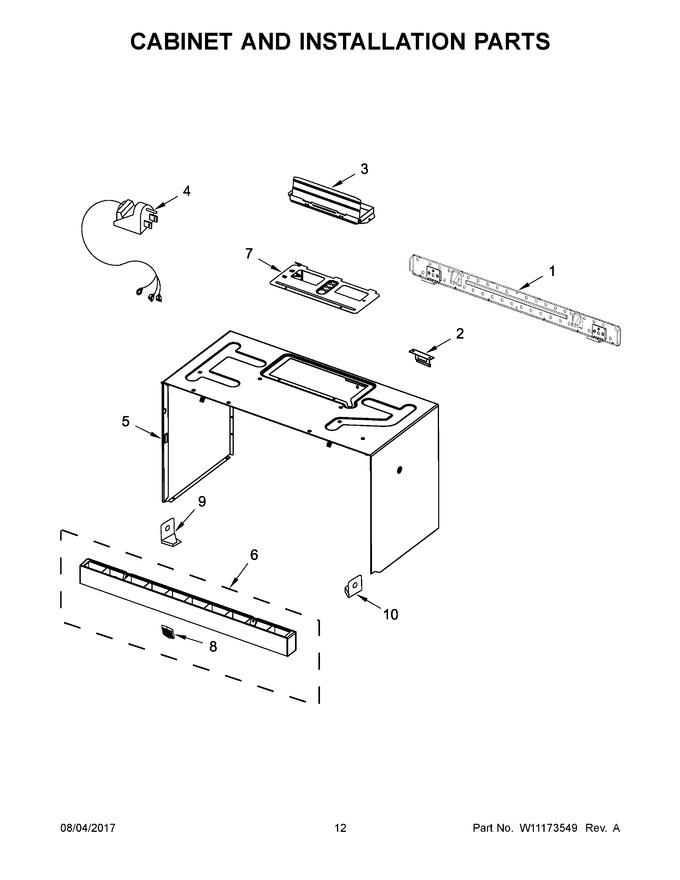

01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 21.16
2	8206385		Support, Wire Clip				$ 31.89
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 65.74
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 18.48
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 250.22
6	W10527308		Grille, Vent (white)				$ 93.71
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10286845		Badge				$ 35.23
9	W11026306		Vent Grid Holder, Left Side (white)   (Replaces: W10393278)			Immediately	$ 6.47
10	W10703282		Vent Grid Holder, Right Side (white)   (Replaces: W10393276)				$ 9.44
5A	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 255.01
6A	W10527310		Grille, Vent (black)				$ 84.34
6B	W10259232		Grille, Vent (stainless)			Immediately	$ 144.91
9A	W10830163		Vent Grid Holder, Left Side (black)   (Replaces: W10703285)				$ 12.18
NI	8205948		Miscellaneous Parts, Hardware, Installation				$ 23.06
NI	W10190018		Miscellaneous Parts, Template, Upper (english & French)			Immediately	$ 6.47
NI	W10190020		Miscellaneous Parts, Template, Upper (english & Spanish)				$ 56.21
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10553852		Miscellaneous Parts, Harness, Wire Turntable Motor And Hood Lamp		Appelez-nous	-
NI	W10556400		Miscellaneous Parts, Harness, Main				$ 155.90
NI	W10810989		Vent Grid Holder, Right Side (black)   (Replaces: W10703283)				$ 8.76

    View Diagram in Separate Window       Print Part List
