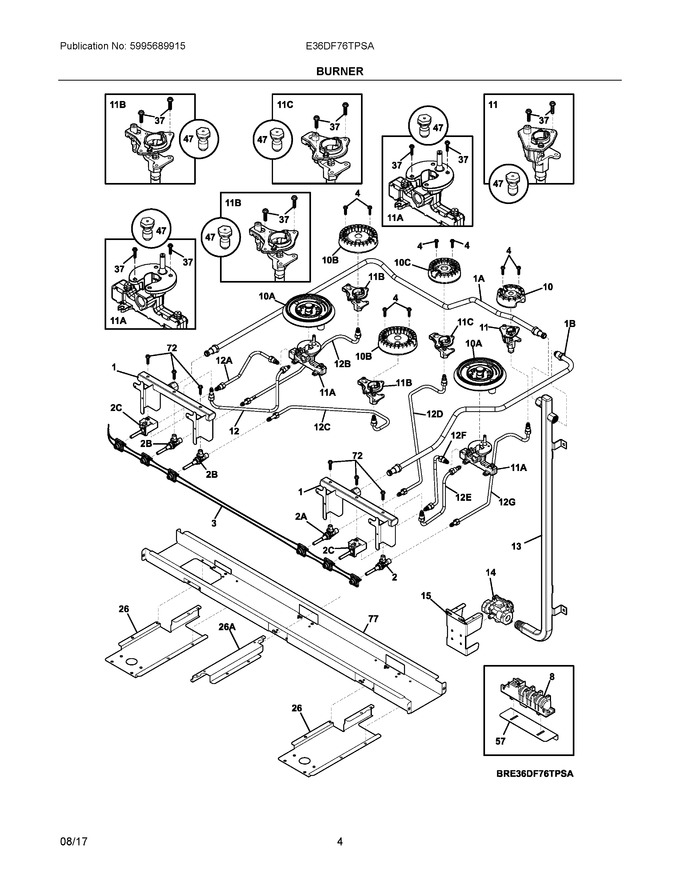

03 - Burner


04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509808		Manifold Pipe, (2)		Appelez-nous	-
2	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
3	5304509820		Switch Assembly, Ignitor, W/harness				$ 100.56
4	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
8	808608804		Spark Module			Immediately	$ 76.06
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
12	807544001		Tube, Burner, Left Front, Dual Simmer		Appelez-nous	-
13	318357811		Manifold, Regulator		Appelez-nous	-
14	318122705		Regulator, Pressure				$ 120.58
15	318376123		Bracket, Regulator		Appelez-nous	-
26	318363803		Bracket, Channel Mtg		Appelez-nous	-
37	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
47	5304506292		Lp Kit, Gas Conversion				$ 88.41
57	5304509835		Bracket, Spark Module		Appelez-nous	-
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	318355513		Bracket, Channel Mtg.		Appelez-nous	-
10A	5304501023		Burner Assembly, G5				$ 165.99
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
11A	316440100		Ignitor/orifice Assy., Top Burner, Twin, 17k, W/holder				$ 167.98
11B	316543204		Ignitor/orifice Assy., Top Burner, 14k				$ 12.33
11C	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
12A	807544002		Tube, Burner, Left Front, Dual Main		Appelez-nous	-
12B	807544003		Tube, Burner, Left Rear		Appelez-nous	-
12C	807544004		Tube, Burner, Center Front		Appelez-nous	-
12D	807544005		Tube, Burner, Center Rear		Appelez-nous	-
12E	807544006		Tube, Burner, Right Front, Dual Simmer		Appelez-nous	-
12F	807544007		Tube, Burner, Right Front, Dual Main		Appelez-nous	-
12G	807544008		Tube, Burner, Right Rear		Appelez-nous	-
1A	318305453		Tube, Manifold, Interconnect				$ 111.48
1B	318305454		Tube, Manifold, Interconnect				$ 102.77
26A	318363903		Bracket, Channel Mtg.		Appelez-nous	-
2A	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
2B	5304507282		Valve, Top Burner, Red Stem, 1800btu			Immediately	$ 53.85
2C	316272310		Valve, Dual Burner, Twin				$ 187.32
NI	316566901		Sleeve, Insulator				$ 12.89
NIA	5304509840		Harness, Ignitor Module		Appelez-nous	-
