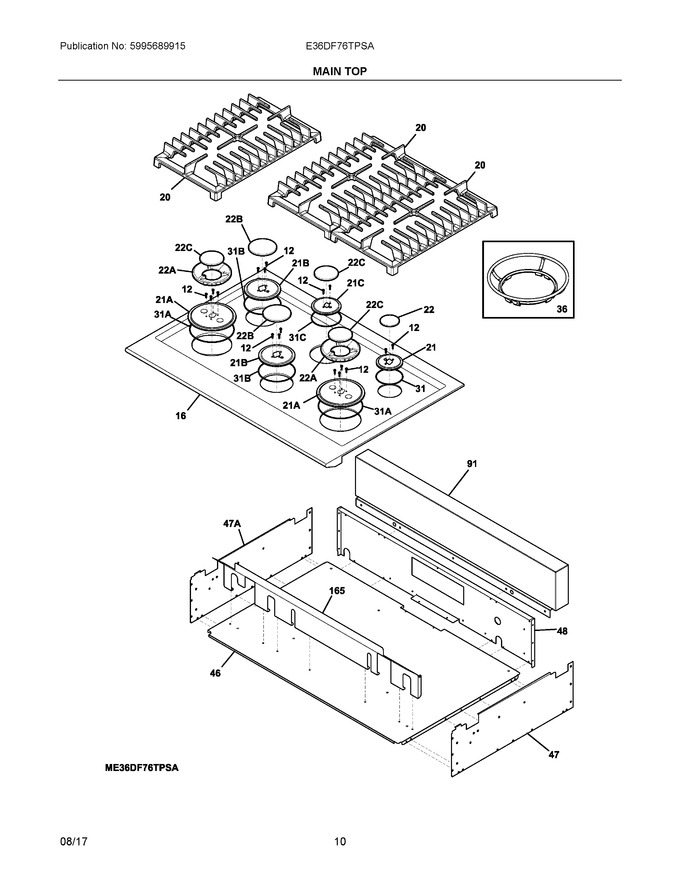

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
16	318185234		Main Top Assy, Frame/glass, Stainless/black				$ 1,125.22
20	5304509811		Grate, Black				$ 264.37
21	318293107		Skirt, 5k Burner, Black				$ 60.67
22	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
31	316242002		Seal, 5k/9.5k Burner				$ 25.02
36	5304509823		Grate, Wok Ring		Appelez-nous	-
46	5304509785		Panel, Cooktop, Bottom		Appelez-nous	-
47	318241706		Panel, Side, Rh		Appelez-nous	-
48	5304509832		Panel, Cooktop, Rear		Appelez-nous	-
91	5304509789		Panel, Backsplash, Stainless				$ 321.59
165	318355151		Deflector, Heat		Appelez-nous	-
21A	316283900		Skirt, 17k Twin Burner, Black				$ 54.60
21B	318293308		Skirt, 14k Burner, Black			Immediately	$ 70.52
21C	318293007		Skirt, 9.5k Burner, Black				$ 65.22
22A	5304519953		Cap, Burner, Brass, G5   (Replaces: 139029200)				$ 165.17
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
31A	316515203		Seal, 17k Twin Burner, (2)				$ 70.31
31B	316242000		Seal, 12k/14k Burner				$ 73.71
31C	316242001		Seal, 9.5k/12k Burner				$ 23.06
47A	318241707		Panel, Side, Lh		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
