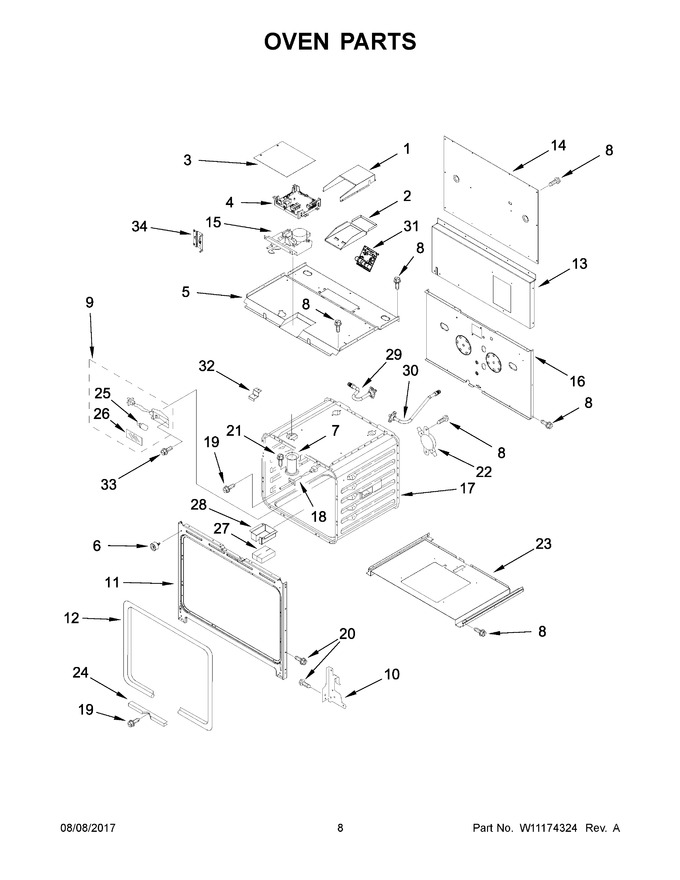

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10235557 | Assembly, Drawer |
|
- | |||||
| 2 | W10853036 | Support, Control |
|
- | |||||
| 3 | W10239444 | Seal, Control |
|
- | |||||
| 4 | W10888661 | Manager, Appliance (Replaces: W10859106) |
|
Immediately | $ 442.82 | ||||
| 5 | W10145373 | Top, Chassis |
|
- | |||||
| 6 | W10105790 | Bumper & Screw |
|
$ 6.35 | |||||
| 7 | W10145743 | Tube, Vent |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 9 | WPW10307114 | Assembly, Oven Light (Replaces: W10307114) |
|
Immediately | $ 99.44 | ||||
| 10 | WP4455605 | Receiver, Hinge (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 11 | W10160867 | Frame, Front |
|
$ 173.44 | |||||
| 12 | W11676901 | Gasket, Oven (Replaces: W10850857) |
|
$ 63.24 | |||||
| 13 | W10145391 | Panel, Back Bottom |
|
- | |||||
| 14 | W10321815 | Panel, Back Top |
|
- | |||||
| 15 | W11029221 | Latch, Motorized (Replaces: W10830016) |
|
Immediately | $ 280.85 | ||||
| 16 | W10145355 | Back, Chassis |
|
- | |||||
| 17 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 18 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 86.25 | ||||
| 19 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 20 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 21 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 22 | WP4450249 | Thermostat (tod) (Replaces: 4450249) |
|
Immediately | $ 181.29 | ||||
| 23 | W10145370 | Bottom, Chassis |
|
- | |||||
| 24 | W11368870 | Retainer, Gasket (30") (Replaces: W10157511) |
|
$ 21.35 | |||||
| 25 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 42.64 | ||||
| 26 | W10169756 | Lens, Light |
|
$ 36.16 | |||||
| 27 | W11688851 | Insulation, Broil Cover (Replaces: W10311009) |
|
- | |||||
| 28 | W10310985 | Cover, Broil |
|
- | |||||
| 29 | W10813909 | Tube, Bake (right) |
|
- | |||||
| 30 | W10813915 | Tube, Broil |
|
- | |||||
| 31 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 215.63 | ||||
| 32 | W10308039 | Bracket, Bake Alignement |
|
- | |||||
| 33 | 4449748 | Screw |
|
$ 12.20 | |||||
| 34 | W10145362 | Bracket-board, Dsi |
|
$ 69.71 | |||||
| 10A | WP4455606 | Receiver, Hinge (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| NI | W11688743 | Insulation, Wrap (Replaces: W10282811) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11688536 | Insulation, Bottom (Replaces: W10299356) |
|
- | |||||
| NI | W11688721 | Insulation, Back (Replaces: W10299351) |
|
- |
