01 - Cover Sheet

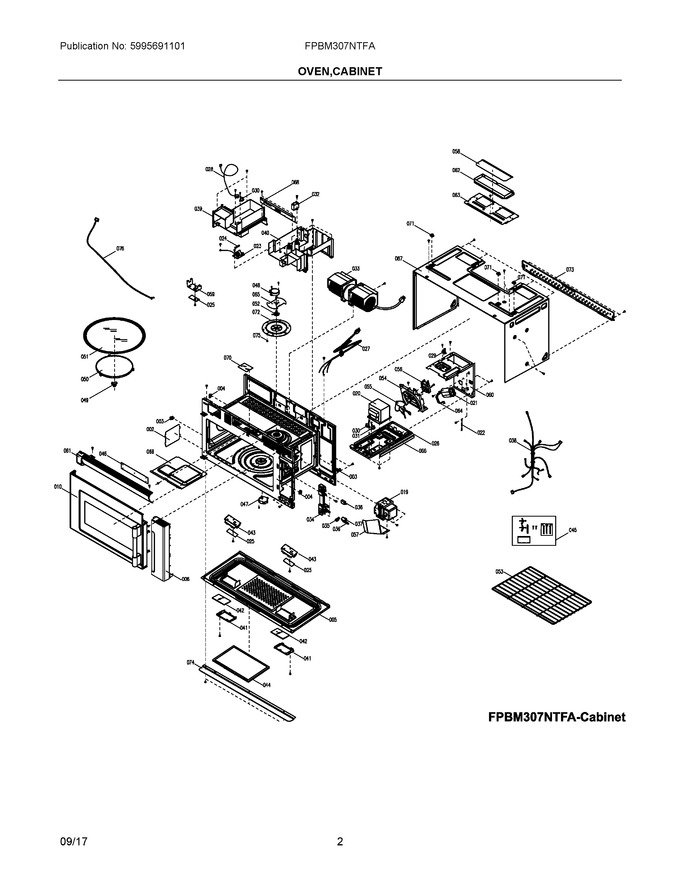

02 - Oven, Cabinet


03 - Control Panel, Door, Misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304509435		Cover, Waveguide			Immediately	$ 13.74
3	5304509642		Support A, Shelf			Immediately	$ 14.55
4	5304509643		Support B, Shelf				$ 13.83
5	5304499574		Base, Unit Chassis				$ 238.85
6	5304513446		Control Assembly, Stainless		Appelez-nous	-
10	5304513450		Door Assembly, Complete, W/pc Board		Appelez-nous	-
19	5304513456		Magnetron, High Voltage				$ 283.53
20	5304513457		Transformer, High Voltage				$ 414.67
21	5304513458		Capacitor, High Voltage			Immediately	$ 124.39
22	5304513459		Diode, High Voltage			Immediately	$ 30.37
23	5304509452		Filter, Noise, Electronic			Immediately	$ 75.74
24	5304509451		Fuse			Immediately	$ 13.01
25	5304509445		Lamp Assembly, Led			Immediately	$ 51.55
26	5304513460		Plate, Hv Transformer, Mounting		Appelez-nous	-
27	5304509489		Power Cord, Electric		Appelez-nous	-
28	5304509652		Sensor, Humidity				$ 305.46
29	5304513461		Thermostat, 160/95 *v			Immediately	$ 26.95
30	5304513462		Thermostat, 120/0 *v			Immediately	$ 25.54
31	5304513463		Thermostat, 70/40 *v			Immediately	$ 26.99
32	5304512525		Capacitor, Start		Appelez-nous	-
33	5304513464		Fan Assembly, Venting, W/motor				$ 557.67
34	5304509457		Latch Hook			Immediately	$ 43.79
35	5304509458		Lever, Switch			Immediately	$ 10.17
36	5304509460		Switch, Interlock			Immediately	$ 45.27
37	5304509459		Switch, Monitor			Immediately	$ 30.84
38	5304513465		Harness, Wiring, Main		Appelez-nous	-
39	5304513466		Duct, Air Guide, Lh		Appelez-nous	-
40	5304513467		Duct, Air Guide, Rh		Appelez-nous	-
41	5304509441		Frame, Lens Holder		Appelez-nous	-
42	5304509443		Lens, Cooktop Lamp, Glass		Appelez-nous	-
43	5304509442		Cover, Lamp				$ 59.09
44	5304513468		Filter, Grease				$ 159.68
45	5304513469		Mounting Kit, W/templates			Immediately	$ 62.38
46	5304513470		Filter, Charcoal				$ 33.44
47	5304513471		Motor, Turn Table			Immediately	$ 92.20
48	5304509651		Motor, Stirrer Fan				$ 145.26
49	5304513472		Coupler, Turn Table			Immediately	$ 19.76
50	5304509438		Support, Turntable Ring				$ 52.20
51	5304513473		Tray, Turn Table, Glass				$ 209.21
52	5304509650		Shaft, Stirrer Fan				$ 19.52
53	5304513474		Shelf, Wire		Appelez-nous	-
54	5304513475		Guide, Fan		Appelez-nous	-
55	5304509473		Fan Blade, Cooling Fan				$ 15.47
56	5304513476		Motor, Fan				$ 190.32
57	5304513477		Guide, Air, Magnetron				$ 21.55
58	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 27.73
59	5304513478		Bracket, Led Light		Appelez-nous	-
60	5304513479		Duct, Air Guide, Back		Appelez-nous	-
61	5304513480		Grill, Vent				$ 147.09
62	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 25.32
63	5304513481		Cover, Vent Motor				$ 51.38
64	5304513482		Holder, Hv Capacitor		Appelez-nous	-
65	5304509649		Fan Blade, Stirrer				$ 15.90
66	5304509482		Cushion, Foam Pad, Transformer		Appelez-nous	-
67	5304513483		Wrapper, Outer Case		Appelez-nous	-
68	5304513484		Shield, Air		Appelez-nous	-
69	5304513485		Cover, Cavity Lamp		Appelez-nous	-
70	5304509455		Tape, Lamp		Appelez-nous	-
71	5304509436		Mounting Nut Kit			Immediately	$ 14.71
72	5304509626		Cover, Stirrer Fan				$ 49.89
73	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 59.63
74	5304509648		Shield, Heat, Base Plate				$ 94.71
75	5304509625		Pin, Mounting, Stirrer Cover				$ 3.62
76	5304504073		Wire, Connector, Pc Board				$ 130.98
