SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

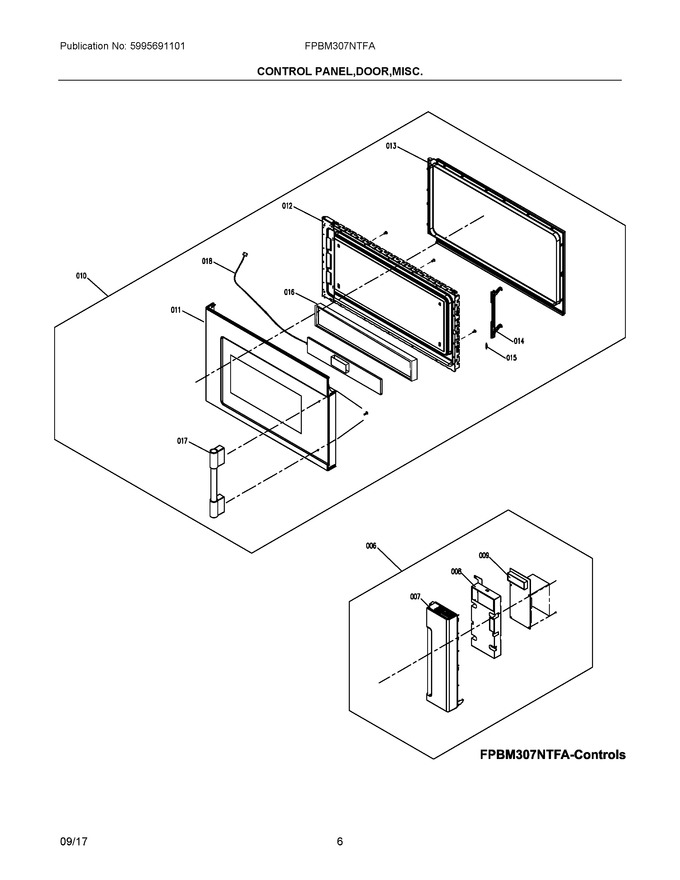

03 - Control Panel, Door, Misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304513446		Control Assembly, Stainless		Appelez-nous	-
7	5304513447		Control Panel, Stainless		Appelez-nous	-
8	5304513448		Panel, Control Mount, Bracket		Appelez-nous	-
9	5304513449		Pc Board, Control/power, Main		Appelez-nous	-
10	5304513450		Door Assembly, Complete, W/pc Board		Appelez-nous	-
11	5304513451		Door Assembly, Outer, Stainless		Appelez-nous	-
12	5304513452		Frame, Inner Door		Appelez-nous	-
13	5304513453		Frame, Choke Cover, Inner Door				$ 52.78
14	5304525298		Latch, Door   (Replaces: 5304509432)			Immediately	$ 10.85
15	5304521953		Spring, Door Latch   (Replaces: 5304509433)				$ 7.23
16	5304513454		Cover, Display Board		Appelez-nous	-
17	5304513455		Handle, Door, Stainless			Immediately	$ 187.34
18	5304504072		Pc Board, Display/input			Immediately	$ 294.84

    View Diagram in Separate Window       Print Part List
