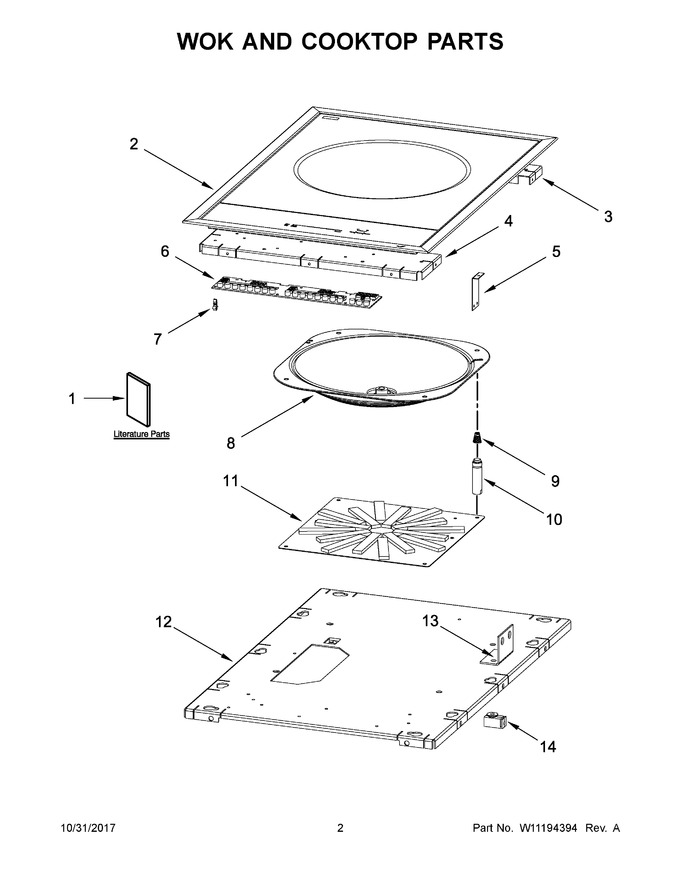

02 - Wok And Cooktop Parts
03 - Burner Box And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11032805 | Installation Instructions |
|
- | |||||
| 2 | W11195808 | Glass, Induction Wok (includes Frame) (Replaces: W11195185) |
|
$ 2,070.08 | |||||
| 3 | W11195456 | Bracket, Rear Glass |
|
- | |||||
| 4 | W11196510 | Bracket, Control (Replaces: W11195187) |
|
- | |||||
| 5 | W11195458 | Bracket, Top Center Support |
|
- | |||||
| 6 | W11195811 | Control, Electronic (Replaces: W11195186) |
|
$ 528.89 | |||||
| 7 | W11195162 | Standoff, Control |
|
- | |||||
| 8 | W11195432 | Coil, Wok |
|
- | |||||
| 9 | W11195437 | Spring, Bowl Support |
|
- | |||||
| 10 | W11195450 | Post, Bowl Support |
|
- | |||||
| 11 | W11196511 | Plate, Ferrite (Replaces: W11195451) |
|
- | |||||
| 12 | W11195462 | Plate, Wok Generator |
|
- | |||||
| 13 | W11195461 | Bracket, Bottom Center Support |
|
- | |||||
| 14 | W11195464 | Isolator |
|
- | |||||
| 1A | W11032804 | Use And Care Guide |
|
- | |||||
| 1B | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1C | W10065852 | Tips, Safe Cooking (french) |
|
- |
