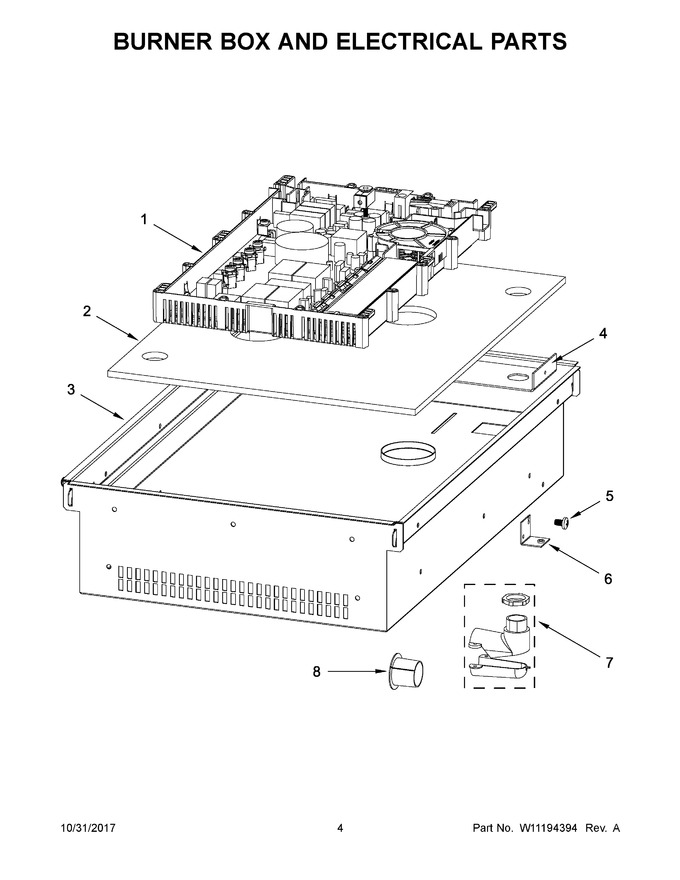

03 - Burner Box And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11195813 | Board, Induction Power (Replaces: W11195387) |
|
$ 1,282.19 | |||||
| 2 | W11195473 | Insulation, Induction |
|
- | |||||
| 3 | W11195189 | Box, Burner |
|
- | |||||
| 4 | W11093293 | Bracket, Conduit |
|
- | |||||
| 5 | W10626012 | Screw |
|
- | |||||
| 6 | 8190978 | Bracket, Mounting |
|
$ 81.04 | |||||
| 7 | W11095695 | Connector, Conduit (Replaces: W11093301) |
|
- | |||||
| 8 | W11266073 | Bushing, Plastic (Replaces: W11093321) |
|
- | |||||
| NI | W10355051 | Accessories, Cleaner, Cooktop |
|
$ 7.53 | |||||
| NI | W11173757 | Accessories, Kit, Module Mounting Bridge (Replaces: W11031680) |
|
$ 380.07 | |||||
| NI | WA906B | Accessories, Scraper, Cooktop |
|
Immediately | $ 4.86 | ||||
| NI | W11195178 | Miscellaneous Parts, Harness, Main |
|
$ 106.82 |
