SELECT A DIAGRAM

01 - Cover Sheet

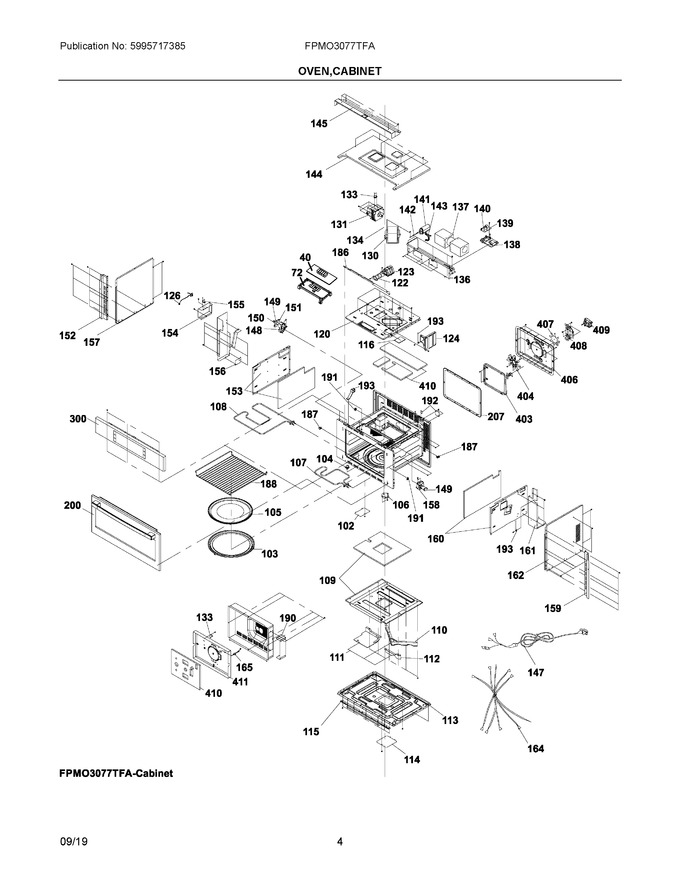

02 - Oven,cabinet


03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
40	5304518899		Pc Board, Control, Main			Immediately	$ 383.15
72	5304518909		Bracket, Control Board, Main				$ 39.29
102	5304514227		Cover, Wave Guide			Immediately	$ 8.68
103	5304514228		Tray, Metal				$ 202.92
104	5304514229		Coupler, Tray			Immediately	$ 65.50
105	5304514285		Tray, Glass				$ 338.67
106	5304514231		Motor, Turntable			Immediately	$ 63.95
107	5304515314		Heater, Lower		Appelez-nous	-
108	5304514233		Heater, Upper				$ 65.79
109	5304514234		Insulation, Assembly, Lower		Appelez-nous	-
110	5304514235		Air Guide, Lower 1		Appelez-nous	-
111	5304514236		Air Guide, Lower 2		Appelez-nous	-
112	5304514237		Air Guide, Lower 3		Appelez-nous	-
113	5304514238		Base Plate				$ 124.03
114	5304514239		Cover, Motor		Appelez-nous	-
115	5304515325		Air Guide, Front		Appelez-nous	-
116	5304514241		Glass, Lamp				$ 14.46
120	5304514244		Insulation, Assembly, Upper		Appelez-nous	-
122	5304528944		Lamp, Assembly   (Replaces: 5304514246)			Immediately	$ 83.86
123	5304514247		Cover, Lamp				$ 12.05
124	5304515324		Air Guide, Assembly, Lamp				$ 17.72
126	5304509652		Sensor, Humidity				$ 305.46
130	5304514249		Transformer, High Voltage				$ 325.22
131	5304514250		Magnetron			Immediately	$ 433.94
133	5304515313		Thermostat, 160/95			Immediately	$ 31.66
134	5304514252		Fuse Assembly, High Voltage				$ 32.58
136	5304514254		Bracket, Exhaust Fan		Appelez-nous	-
137	5304514255		Exhaust Fan, Assembly, W/motor				$ 221.55
138	5304515326		Holder, Noise Filter				$ 18.79
139	5304525109		Filter, Noise, Electronic   (Replaces: 5304512523)				$ 86.00
140	5304514258		Fuse			Immediately	$ 13.83
141	5304513458		Capacitor, High Voltage			Immediately	$ 124.39
142	5304513459		Diode, High Voltage			Immediately	$ 30.37
143	5304513482		Holder, Hv Capacitor		Appelez-nous	-
144	5304514259		Outer Case, Upper		Appelez-nous	-
145	5304518908		Bracket, Cabinet, Upper		Appelez-nous	-
147	5304515312		Power Cord, Electric				$ 173.50
148	5304515317		Latch Board, Lh			Immediately	$ 31.08
149	5304514264		Switch, Micro			Immediately	$ 36.05
150	5304514265		Rod, Release			Immediately	$ 5.21
151	5304514266		Switch, Micro, Monitor			Immediately	$ 27.77
152	5304515315		Bracket, Trim, Lh			Immediately	$ 41.93
153	5304514268		Insulation, Assembly, Lh		Appelez-nous	-
154	5304514269		Air Duct, Lh		Appelez-nous	-
155	5304514270		Thermostat, Heater, 130c/120c				$ 18.08
156	5304515320		Air Tunnel, Assembly, Lh		Appelez-nous	-
157	5304514272		Outer Case, Lh		Appelez-nous	-
158	5304515318		Latch Board, Rh			Immediately	$ 31.79
159	5304515316		Bracket, Trim, Rh			Immediately	$ 47.71
160	5304514275		Insulation, Assembly, Rh		Appelez-nous	-
161	5304515323		Air Guide, Assembly, Rh		Appelez-nous	-
162	5304514277		Outer Case, Rh		Appelez-nous	-
164	5304515319		Harness, Wiring, Main				$ 287.97
165	5304514280		Thermister				$ 48.29
186	5304514282		Wind Guide, Cavity, Upper		Appelez-nous	-
187	5304514283		Support, Shelf, Lhf/rhr				$ 10.94
188	5304514284		Shelf, Wire				$ 81.69
190	5304514286		Wind Guide, Back Cover		Appelez-nous	-
191	5304514287		Support, Shelf, Rhf/lhr				$ 10.85
192	5304515311		Cover, Light Block		Appelez-nous	-
193	5304515327		Support, Wire				$ 9.50
200	5304515299		Door Assembly, Complete				$ 1,255.58
207	5304515305		Gasket, Door, Silicone				$ 98.32
300	5304515306		Control Panel, Assembly, Complete				$ 1,345.39
403	5304514293		Element, Convection			Immediately	$ 57.11
404	5304514294		Fan Blade, Convection				$ 39.56
406	5304514296		Cover, Element		Appelez-nous	-
407	5304514297		Fan Blade, Cooling				$ 11.13
408	5304514298		Bracket, Convection Mtr				$ 12.29
409	5304514299		Motor, Convection				$ 113.36
410	5304514300		Insulation, Convection		Appelez-nous	-
411	5304514301		Cover, Convection		Appelez-nous	-
NIA	5304515321		Bracket, Guide Plate		Appelez-nous	-
NIB	5304515322		Bracket, Guide Plate				$ 10.63

    View Diagram in Separate Window       Print Part List
