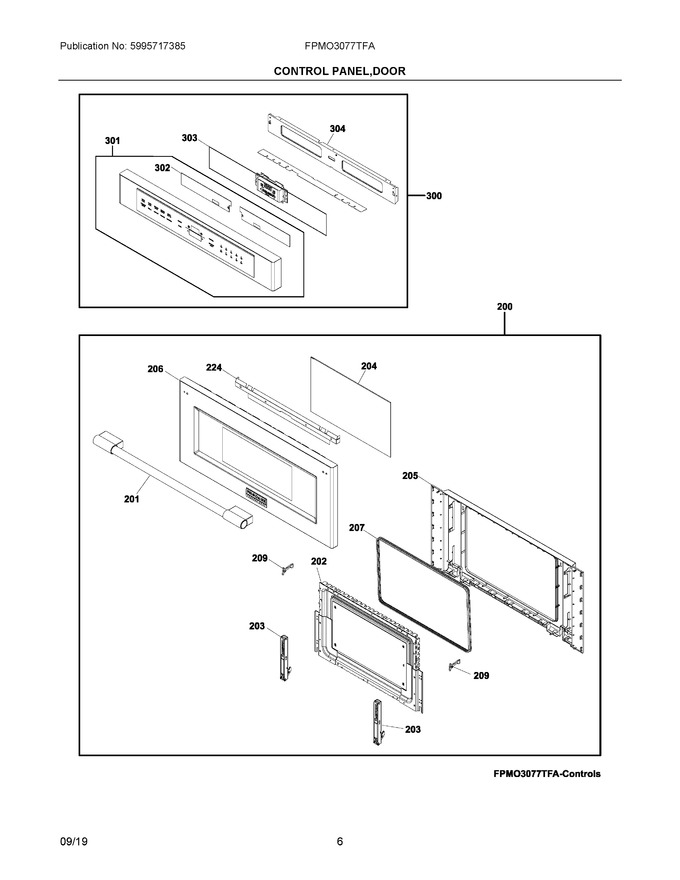

SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet


03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
200	5304515299		Door Assembly, Complete				$ 1,255.58
201	5304515299		Handle, Assembly, Door   (Replaces: 5304515304)				$ 1,255.58
202	5304515300		Door Frame, Assembly		Appelez-nous	-
203	5304515301		Hinge, Assembly				$ 188.78
204	5304514306		Glass, Door, Middle			Immediately	$ 159.96
205	5304515302		Cover, Choke, Door				$ 99.62
206	5304515303		Door Panel, Assembly, Outer		Appelez-nous	-
207	5304515305		Gasket, Door, Silicone				$ 98.32
209	5304514310		Latch, Door		Appelez-nous	-
224	5304514316		Heat Sheild, Door, Upper		Appelez-nous	-
300	5304515306		Control Panel, Assembly, Complete				$ 1,345.39
301	5304515307		Control Panel, Assembly, Front				$ 504.34
302	5304515308		Pc Board, Assembly, Ui			Immediately	$ 198.81
303	5304515309		Pc Board, Assembly, Display				$ 293.51
304	5304515310		Bracket, Control Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
