01 - Cover Sheet

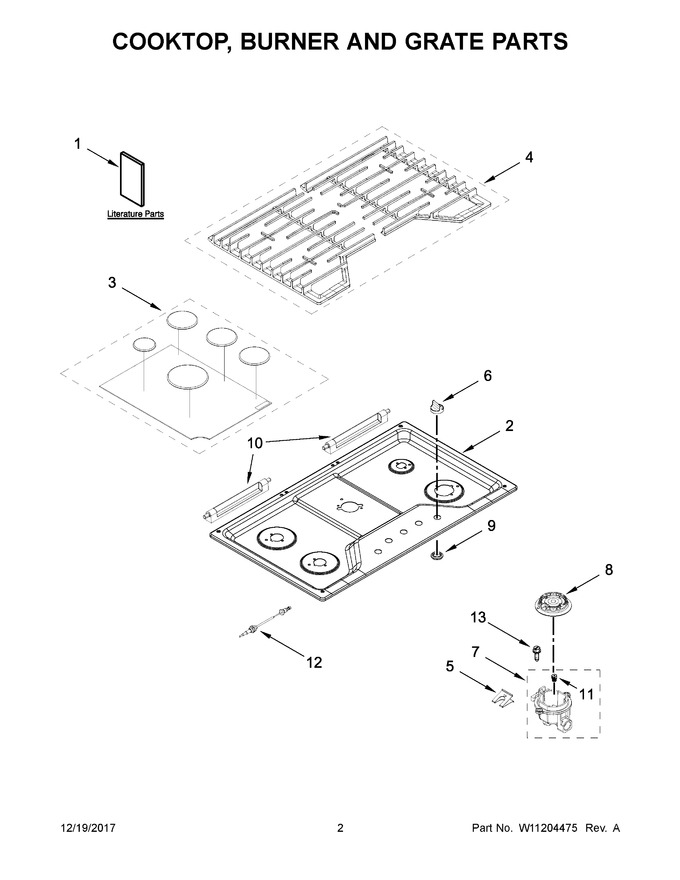

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11116971 | Instructions, Installation |
|
- | |||||
| 2 | W11205392 | Cooktop (stainless) (Replaces: W11131859) |
|
$ 477.70 | |||||
| 3 | W11205294 | Kit, Burner Cap (black) (Replaces: W11169224) |
|
Immediately | $ 82.63 | ||||
| 4 | W11204009 | Kit, Grate (black) (Replaces: W11047085) |
|
$ 302.21 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 6 | W11366438 | Knobs, Cooktop (stainless) (Replaces: W11084623) |
|
Immediately | $ 56.15 | ||||
| 7 | W10597166 | Holder, Orifice (9.1k) (left Front & Left Rear) |
|
$ 63.25 | |||||
| 8 | WP8286814 | Head, Burner (left Front, Left Rear, & Right Front) (Replaces: 8286814) |
|
$ 106.79 | |||||
| 9 | W11206740 | Grommet (black) (Replaces: W10625915) |
|
$ 7.81 | |||||
| 10 | W10826075 | Rear, Hinge-grate (stainless Model Only) |
|
$ 94.24 | |||||
| 11 | W10652710 | Orifice (left Front & Left Rear) |
|
$ 23.37 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front, Left Rear, & Right Front) (Replaces: W10541842) |
|
$ 52.13 | |||||
| 13 | W11699921 | Screw (Replaces: W10758282) |
|
$ 12.66 | |||||
| 11A | W10791076 | Orifice (right Front) (Replaces: W10151347) |
|
$ 85.86 | |||||
| 11B | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 77.40 | |||||
| 11C | W10791073 | Orifice (center) (Replaces: W10609592) |
|
$ 80.11 | |||||
| 12A | W11507532 | Wiring, Electrode (right Rear) (Replaces: W10541843) |
|
Immediately | $ 52.19 | ||||
| 12B | W10611443 | Wiring, Electrode (center) |
|
$ 80.26 | |||||
| 1A | W10672375 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W11120470 | Guide, Use & Care |
|
- | |||||
| 1C | W11168236 | Instructions, Lp Conversion |
|
- | |||||
| 7A | W10613381 | Holder, Orifice (10k) (right Front) |
|
$ 61.77 | |||||
| 7B | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 33.26 | |||||
| 7C | W10609591 | Holder, Orifice (15k) (center) |
|
$ 62.03 | |||||
| 8A | WP8286813 | Head, Burner (right Rear) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 8B | WP8286815 | Head, Burner (center) (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| NI | WP7101P062-60 | Screw (used For Tie Down Bracket) (Replaces: 7101P062-60) |
|
$ 7.24 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11561443 | Harness, Main (Replaces: W10868535) |
|
$ 54.68 | |||||
| NI | W10392003 | Cord, Power |
|
$ 138.57 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | W11205318 | Kit, Lp Conversion (Replaces: W11173306) |
|
$ 122.60 | |||||
| NI | WP3801F935-51 | Bracket, Tie Down (Replaces: 3801F935-51) |
|
$ 37.09 |
