SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop, Burner And Grate Parts

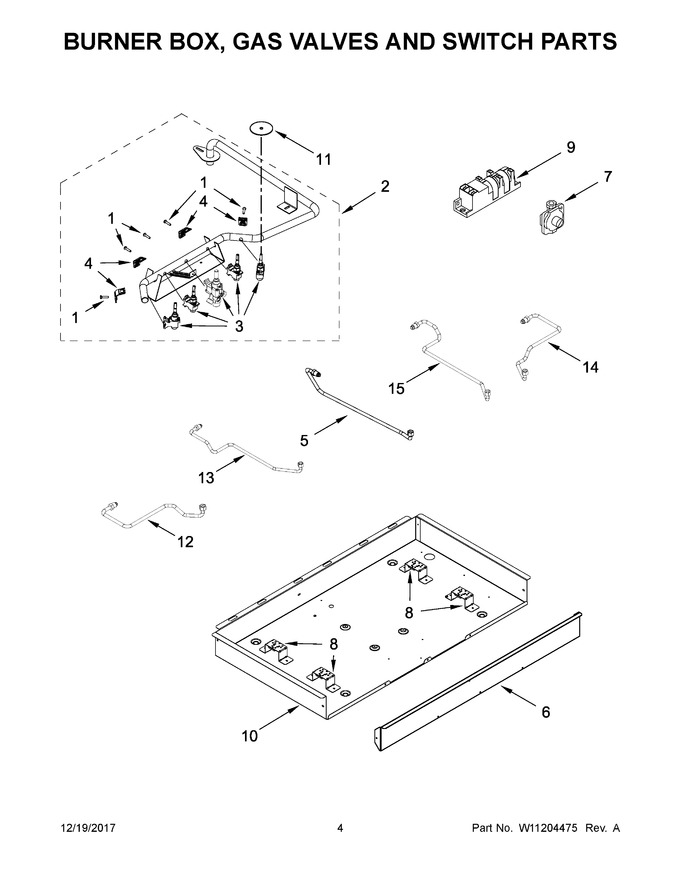

03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11676349 | Screw, Burner Rail (m4) (Replaces: 8286921) |
|
Immediately | $ 12.65 | ||||
| 2 | W11170045 | Assembly, Pipe Manifold |
|
- | |||||
| 3 | W11677628 | Valve, Single (left Front) (Replaces: W10594392) |
|
$ 171.10 | |||||
| 4 | 8287055 | Bracket, Single Valve |
|
$ 65.54 | |||||
| 5 | W10566302 | Tubing, Gas Burner (center, Main) |
|
- | |||||
| 6 | W10721889 | Panel, Front (Replaces: W10614950) |
|
- | |||||
| 7 | W11087445 | Regulator, Pressure (Replaces: W10449143) |
|
Immediately | $ 177.34 | ||||
| 8 | W10594429 | Bracket, Orifice Holder |
|
$ 20.00 | |||||
| 9 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 161.15 | ||||
| 10 | W10728415 | Box, Burner |
|
- | |||||
| 11 | W10140571 | Seal, Switch Shaft |
|
$ 6.60 | |||||
| 12 | W10566287 | Tubing, Gas Burner (left Front) |
|
- | |||||
| 13 | W10566295 | Tubing, Gas Burner (left Rear) |
|
$ 65.53 | |||||
| 14 | W10566290 | Tubing, Gas Burner (right Front) |
|
- | |||||
| 15 | W10566289 | Tubing, Gas Burner (right Rear) |
|
- | |||||
| 3A | W11256503 | Valve, Single (left Rear & Center) (Replaces: W10594391) |
|
Immediately | $ 236.01 | ||||
| 3B | W10859922 | Valve, Single (right Front) (Replaces: W10594393) |
|
$ 69.40 | |||||
| 3C | W11712403 | Valve, Single (right Rear) (Replaces: W10597156) |
|
Immediately | $ 86.00 | ||||
| NI | W10685483 | Griddle |
|
$ 83.15 | |||||
| NI | N/P | Following Accessories Not Included |
|
- |
