01 - Cover Sheet

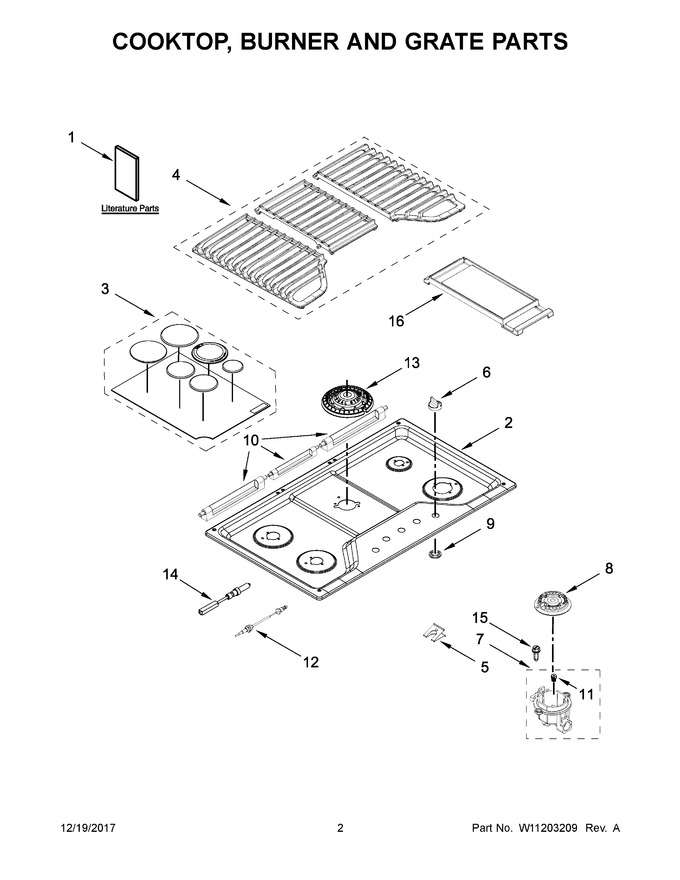

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11116971		Instructions, Installation		Appelez-nous	-
2	W11204397		Cooktop (stainless)   (Replaces: W11131862)				$ 481.09
3	W10819916		Kit, Burner Cap (black)   (Replaces: W10597132)				$ 86.58
4	W11204377		Kit, Grate (black)   (Replaces: W11047088)				$ 312.79
5	8286863		Spring, Electrode				$ 65.93
6	W11204451		Knobs, Cooktop (stainless)   (Replaces: W11084624)			Immediately	$ 70.30
7	W10597166		Holder, Orifice (9.1k) (left Front & Left Rear)				$ 63.25
8	WP8286814		Head, Burner (left Front & Left Rear)   (Replaces: 8286814)				$ 106.79
9	W11206740		Grommet (black)   (Replaces: W10625915)				$ 7.81
10	W10826075		Rear, Hinge-grate (stainless Model Only)				$ 94.24
11	W10652710		Orifice (left Front & Left Rear)				$ 23.37
12	W11507531		Wiring, Electrode (left Front & Right Front)   (Replaces: W10541842)				$ 52.13
13	W10811599		Head, Burner   (Replaces: W10611434)				$ 186.16
14	W10852959		Electrode, Stack (center)   (Replaces: W10763330)			Immediately	$ 66.09
15	W11699921		Screw   (Replaces: W10758282)				$ 12.66
16	W10685483		Griddle				$ 83.15
11A	W10791079		Orifice (right Front)   (Replaces: W10409144)				$ 80.11
11B	W10791082		Orifice (right Rear)   (Replaces: W10652711)				$ 77.40
11C	W11217198		Orifice (center, Main)   (Replaces: W10597160)		Appelez-nous	-
11D	W11205318		Orifice (center, Simmer)   (Replaces: W10151362)				$ 122.60
12A	W11507532		Wiring, Electrode (left Rear & Right Rear)   (Replaces: W10541843)			Immediately	$ 52.19
1A	W10672375		Instructions, Undercounter Install		Appelez-nous	-
1B	W11120470		Guide, Use & Care		Appelez-nous	-
1C	W11168236		Instructions, Lp Conversion		Appelez-nous	-
7A	W10594405		Holder, Orifice (12k) (right Front)				$ 69.87
7B	W10594399		Holder, Orifice (5k) (right Rear)				$ 33.26
7C	W11217186		Holder, Orifice (18k) (center)   (Replaces: W11168368)		Appelez-nous	-
8A	WP8286813		Head, Burner (right Rear)   (Replaces: 8286813)				$ 85.50
8B	WP8286815		Head, Burner (right Front)   (Replaces: 8286815)			Immediately	$ 66.94
NI	9760045		Seal, Foam				$ 236.42
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	W10392003		Cord, Power				$ 138.57
NI	W11561436		Harness, Main   (Replaces: W10868533)				$ 55.30
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	12002793		Tape, Foam   (Replaces: 8270P188-60)				$ 70.97
NI	WP3801F935-51		Bracket, Tie Down   (Replaces: 3801F935-51)				$ 37.09
NI	WP7101P062-60		Screw (used For Tie Down Bracket)   (Replaces: 7101P062-60)				$ 7.24
NI	W11205318		Kit, Lp Conversion   (Replaces: W11173306)				$ 122.60
