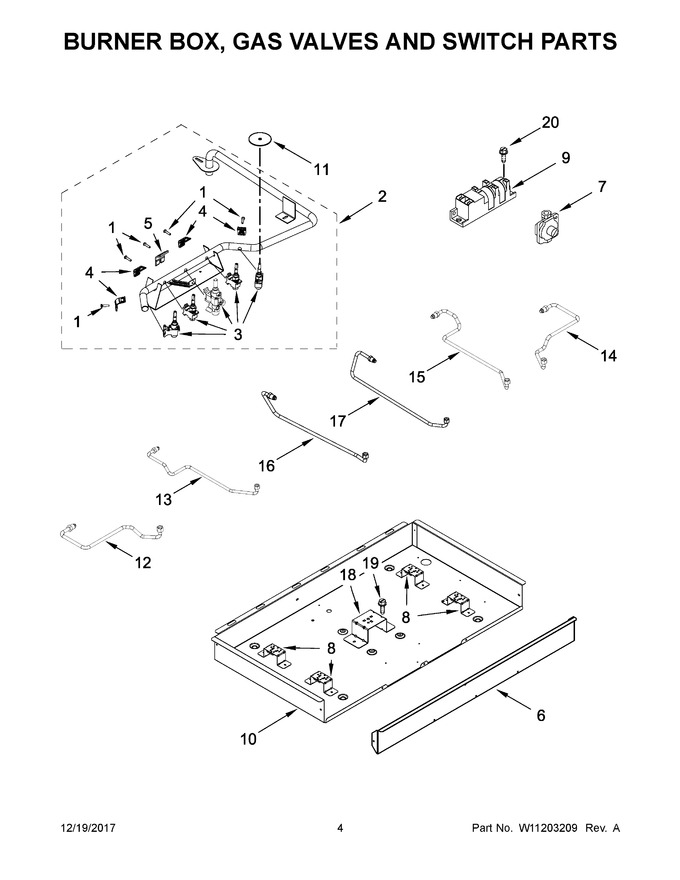

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw, Valve Bracket				$ 10.15
2	W11676622		Assembly, Pipe Manifold   (Replaces: W10594397)				$ 314.57
3	W11677628		Valve, Single (left Front)   (Replaces: W10594392)				$ 171.10
4	8287055		Bracket, Single Valve				$ 65.54
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10718141		Panel, Front   (Replaces: W10614951)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
8	W10594429		Bracket, Orifice Holder				$ 20.00
9	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
10	N/P		Box, Burner (not Serviced)		Appelez-nous	-
11	W10140571		Seal, Switch Shaft				$ 6.60
12	W10566305		Tubing, Gas Burner (left Front)		Appelez-nous	-
13	W10566306		Tubing, Gas Burner (left Rear)		Appelez-nous	-
14	W10566308		Tubing, Gas Burner (right Front)		Appelez-nous	-
15	W10566307		Tubing, Gas Burner (right Rear)		Appelez-nous	-
16	W10566296		Tubing, Gas Burner (center, Main)		Appelez-nous	-
17	W10566297		Tubing, Gas Burner (center, Simmer)		Appelez-nous	-
18	W10594430		Bracket, Orifice Holder				$ 26.81
19	W10443110		Screw			Immediately	$ 13.07
20	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
3A	W11256503		Valve, Single (left Rear)   (Replaces: W10594391)			Immediately	$ 236.01
3B	W10859922		Valve, Single (right Front)   (Replaces: W10594393)				$ 69.40
3C	W11712403		Valve, Single (right Rear)   (Replaces: W10597156)			Immediately	$ 86.00
3D	W11246817		Valve, Dual (center)   (Replaces: W10594389)				$ 213.81
