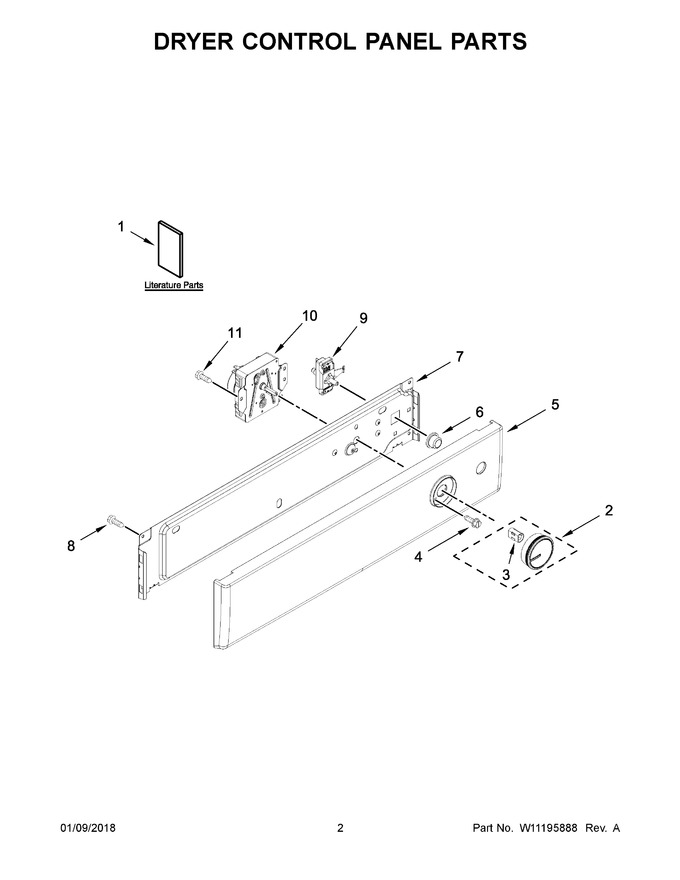

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11028718 | Installation Instructions |
|
- | |||||
| 2 | W11501455 | Assembly, Timer Knob (white/metallic) (Replaces: W10576634) |
|
$ 39.24 | |||||
| 3 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.03 | ||||
| 4 | W10141518 | Screw |
|
$ 8.18 | |||||
| 5 | W11174023 | Fascia, Console (Replaces: W11034585) |
|
$ 319.61 | |||||
| 6 | W11093211 | Button, Push To Start |
|
$ 62.89 | |||||
| 7 | W11088944 | Bracket, Console |
|
- | |||||
| 8 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 9 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 10 | W10854240 | Timer Assembly (Replaces: W10642934) |
|
Immediately | $ 173.60 | ||||
| 11 | WP90767 | Screw |
|
Immediately | $ 7.04 | ||||
| 1A | W11107884 | Use And Care Guide |
|
- | |||||
| 1B | W11097397 | Wiring Diagram |
|
- | |||||
| 1C | W11129496 | Energy Guide |
|
- |
