Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP686711 Handle, Door In-Stock Immediately $ 7.16

2 WP348205 Door, Outer (white)   (Replaces: 348205) In-Stock Immediately $ 132.65

3 280077 Door, Rear Special Order $ 177.82

4 W11613302 Seal, Door   (Replaces: W10823581) Special Order $ 48.27

5 279570 Assembly, Door Catch In-Stock Immediately $ 8.00

6 WP348023 Hinge And Pin Assembly Special Order $ 7.58

7 WP488627 Screw   (Replaces: 342055) Special Order $ 6.81

8 285314 Panel, Front Special Order $ 266.36

9 279264 Seal And Bearing Assembly In-Stock Immediately $ 67.07

10 279220 Clip, Felt Pad Special Order $ 18.59

11 WP3406108 Switch, Door In-Stock Immediately $ 37.10

12 WP3395530 Screw Special Order $ 6.93

13 686770 Protector Support Appelez-nous -
14 279570 Strike, Door In-Stock Immediately $ 8.00

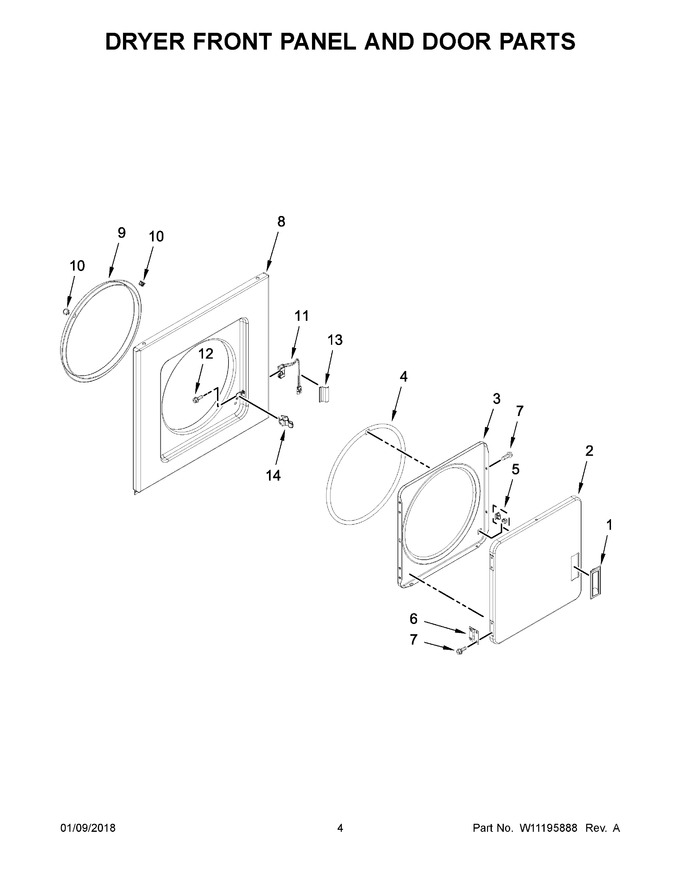

    View Diagram in Separate Window     Print Icon   Print Part List
