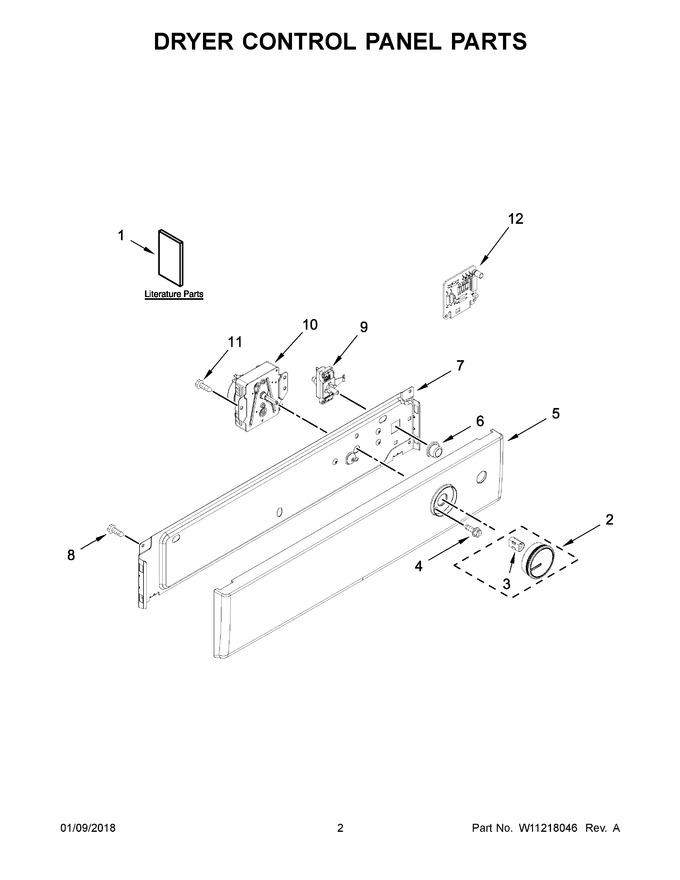

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11028718 | Installation Instructions |
|
- | |||||
| 2 | W11501455 | Assembly, Timer Knob (white/metallic) (Replaces: W10576634) |
|
$ 39.24 | |||||
| 3 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.03 | ||||
| 4 | W10141518 | Screw |
|
$ 8.18 | |||||
| 5 | W11219344 | Fascia, Console (Replaces: W11093187) |
|
- | |||||
| 6 | W11093211 | Button, Push To Start |
|
$ 62.89 | |||||
| 7 | W11088944 | Bracket, Console |
|
- | |||||
| 8 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 9 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 79.28 | ||||
| 10 | W11409801 | Timer, Dryer (Replaces: W10642932) |
|
$ 322.86 | |||||
| 11 | WP90767 | Screw |
|
Immediately | $ 7.04 | ||||
| 12 | WPW10476828 | Control, Electronic (Replaces: W10476828) |
|
Immediately | $ 282.80 | ||||
| 1A | W11107884 | Use And Care Guide |
|
- | |||||
| 1B | W11097396 | Wiring Diagram |
|
- | |||||
| 1C | W11129496 | Energy Guide |
|
- |
