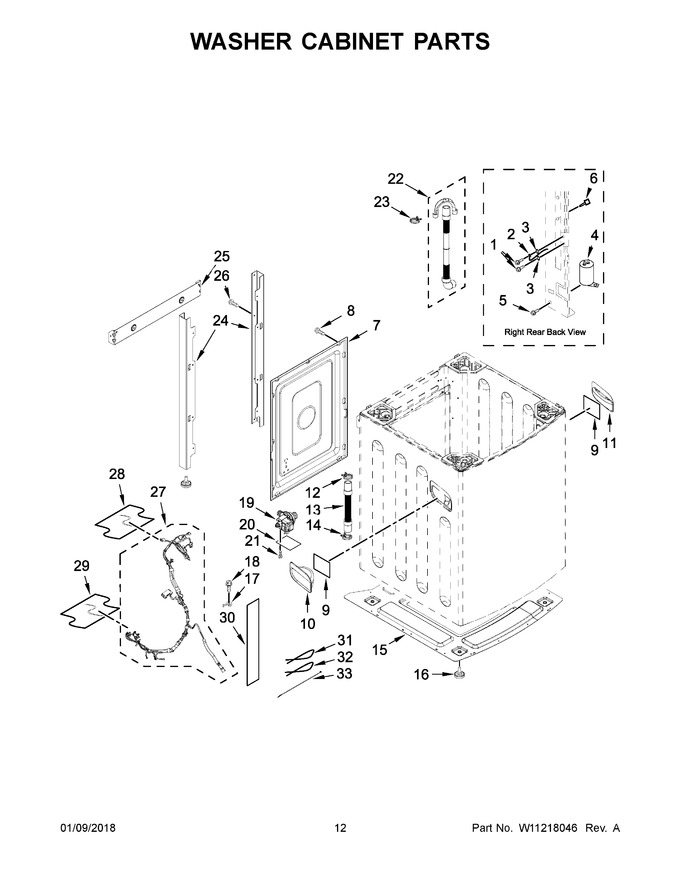

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11176555 | Screw |
|
- | |||||
| 2 | W11178915 | Wire, Ground |
|
- | |||||
| 3 | 4159493 | Lockwasher |
|
$ 21.02 | |||||
| 4 | W11176560 | Capacitor |
|
Immediately | $ 206.85 | ||||
| 5 | W10882000 | Screw |
|
- | |||||
| 6 | W10883617 | Retainer, Harness |
|
- | |||||
| 7 | W11189142 | Panel, Rear (Replaces: W11178927) |
|
$ 135.91 | |||||
| 8 | W10869512 | Screw |
|
- | |||||
| 9 | W11174487 | Foil, Insulation |
|
- | |||||
| 10 | W11174485 | Handle (left) |
|
$ 64.81 | |||||
| 11 | W11174486 | Handle (right) |
|
$ 64.81 | |||||
| 12 | W10883714 | Clamp, Hose |
|
$ 20.71 | |||||
| 13 | W10882096 | Hose (tub To Pump) |
|
Immediately | $ 50.80 | ||||
| 14 | W11832205 | Clamp, Hose (Replaces: W10883610) |
|
$ 18.26 | |||||
| 15 | W11174488 | Base, Washer |
|
- | |||||
| 16 | W11176431 | Feet, Leveling |
|
$ 12.34 | |||||
| 17 | W10883737 | Clamp, Wire |
|
- | |||||
| 18 | W10869499 | Screw |
|
- | |||||
| 19 | W10906604 | Pump, Drain (Replaces: W10882103) |
|
Immediately | $ 288.97 | ||||
| 20 | W11174489 | Pad, Drain Pump |
|
- | |||||
| 21 | W10883733 | Screw |
|
- | |||||
| 22 | W11727711 | Hose, Drain (complete) (Replaces: W11178924) |
|
Immediately | $ 45.33 | ||||
| 23 | W10883711 | Clamp, Hose |
|
$ 21.01 | |||||
| 24 | W11204553 | Bracket, Vertical Support |
|
- | |||||
| 25 | W11174490 | Bracket, Cross Support |
|
- | |||||
| 26 | W11174491 | Screw |
|
- | |||||
| 27 | W11174407 | Harness, Main Washer Wiring |
|
Immediately | $ 208.71 | ||||
| 28 | W11178922 | Cloth, Harness Protector (cabinet Connections Upper) |
|
- | |||||
| 29 | W11269103 | Cloth, Harness Protector (motor Connections Lower) (Replaces: W11178923) |
|
- | |||||
| 30 | W10883704 | Sound Absorber (cabinet) |
|
- | |||||
| 31 | W11178919 | Twist Tie, Harness |
|
- | |||||
| 32 | W11178920 | Twist Tie, Harness |
|
- | |||||
| 33 | W10883819 | Cable Tie |
|
- |
