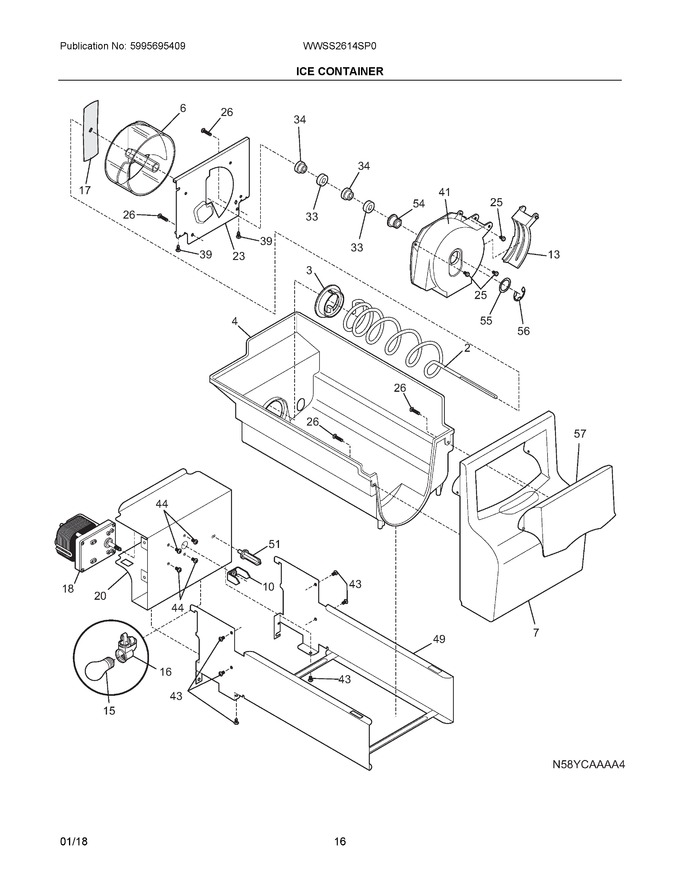

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241716101 | Auger-ice |
|
$ 117.32 | |||||
| 3 | 241685201 | Cam-drive |
|
$ 41.81 | |||||
| 4 | 241734001 | Container-ice, Bucket Only |
|
$ 105.61 | |||||
| 6 | 241685101 | Drum-ice Disp (Replaces: 241685103) |
|
$ 51.74 | |||||
| 7 | 241734201 | Front-ice Container |
|
$ 87.04 | |||||
| 10 | 241726501 | Bar-drive |
|
$ 58.82 | |||||
| 13 | 241885001 | Gate (Replaces: 241685301) |
|
$ 75.83 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light |
|
$ 72.68 | |||||
| 17 | 241684503 | Drive Blade (Replaces: 241684501) |
|
$ 17.44 | |||||
| 18 | 242221501 | Motor-auger |
|
$ 200.51 | |||||
| 20 | 241734902 | Cover, Motor |
|
$ 159.19 | |||||
| 23 | 241684001 | Plate-front |
|
$ 149.54 | |||||
| 25 | 240555002 | Screw, Hex Washer Head, 8-32t X 0.375 (Replaces: 241690701) |
|
Immediately | $ 13.46 | ||||
| 26 | 241690602 | Screw, Cr Pan Hd, 10-16 X 0.500 (Replaces: 215503205) |
|
Immediately | $ 10.63 | ||||
| 33 | 241684802 | Spacer |
|
$ 9.10 | |||||
| 34 | 241689802 | Spacer |
|
$ 8.34 | |||||
| 39 | 241690501 | Screw |
|
$ 16.30 | |||||
| 41 | 241885001 | Housing-crusher (Replaces: 241685601) |
|
$ 75.83 | |||||
| 43 | 218359202 | Screw, Pan Head, 8-32 X 0.250 |
|
$ 10.63 | |||||
| 44 | 218359202 | Screw, 8-32 X 1/4 (Replaces: 241842101) |
|
$ 10.63 | |||||
| 49 | 241734501 | Rail Assy |
|
$ 184.99 | |||||
| 51 | 5304511761 | Stop, Rotation |
|
$ 4.03 | |||||
| 54 | 241685001 | Nut-auger |
|
$ 19.85 | |||||
| 55 | 241690306 | Washer |
|
$ 49.62 | |||||
| 56 | 241690201 | E-ring |
|
$ 19.13 | |||||
| 57 | 241734101 | Door-access |
|
$ 50.61 | |||||
| NI | 240507202 | Deflector-ice Container |
|
$ 62.37 |
