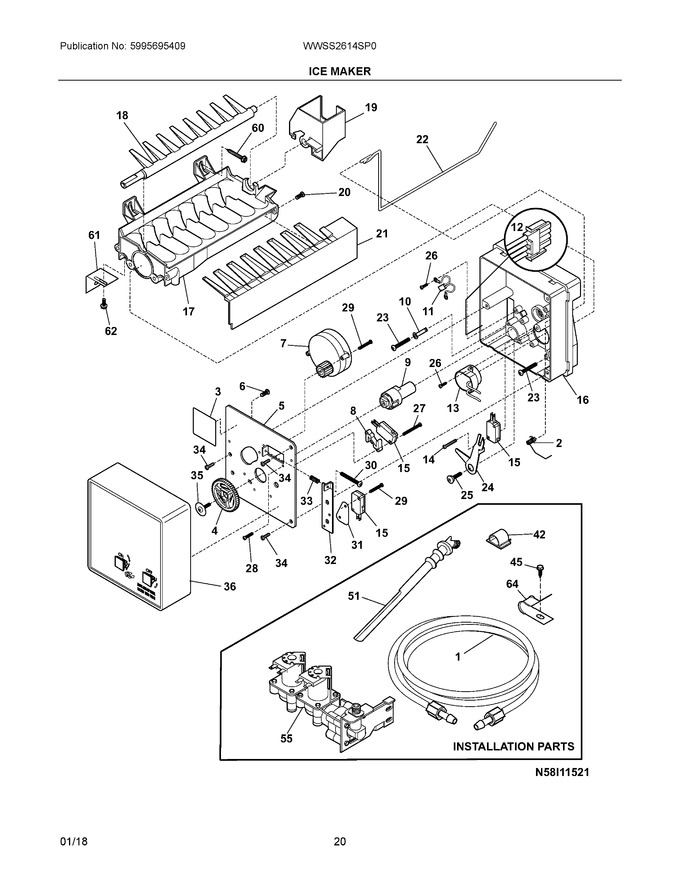

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube, Water, 60", Natural, Door			Immediately	$ 60.25
2	241798211		Ice Maker, Radius Cube, Service, 115 V, Complete		Appelez-nous	-
2	5304420650		Spring, Shut-off Arm		Appelez-nous	-
3	5304456657		Nameplate				$ 3.55
4	5304469403		Gear   (Replaces: 5304456658)				$ 19.99
5	5304456659		Plate-mounting		Appelez-nous	-
6	5304456691		Screw, M 3x20 #3, Valve Plate		Appelez-nous	-
7	241798231		Motor-ice Maker Svo   (Replaces: 5304445222)			Immediately	$ 200.97
8	5304456661		Spacer-hold Switch		Appelez-nous	-
9	5304456662		Cam		Appelez-nous	-
10	5304456689		Washer, Nylon				$ 77.26
11	5304456663		Thermal Cutoff, Ice Maker, Complete Assy		Appelez-nous	-
12	5304456664		Harness-wiring				$ 125.45
13	5304456665		Thermostat, Ice Maker				$ 134.23
14	5304456666		Screw, M 3x20 #2, (6)		Appelez-nous	-
15	5304456667		Switch-micro, (3)				$ 92.53
16	5304456668		Support				$ 132.53
17	241798231		Mold-ice Maker, W/therm Cut Off   (Replaces: 5304456669)			Immediately	$ 200.97
18	5304456670		Ejector-ice		Appelez-nous	-
19	5304456671		Bearing & Inlet, Fill Cup		Appelez-nous	-
20	5304455677		Screw, 8-32 X 3/8		Appelez-nous	-
21	241798231		Ice Stripper   (Replaces: 5304456672)			Immediately	$ 200.97
22	5304456673		Shut-off Arm		Appelez-nous	-
23	5304456674		Screw, M 4x25 #2, Mold-to-support, (2)		Appelez-nous	-
24	5304456675		Lever Arm				$ 66.63
25	5304456676		Screw, M 4x12.8 #2, Lever Arm/sprt		Appelez-nous	-
26	5304420654		Screw-thermo/sprt, 4-24 X 0.375, (4)		Appelez-nous	-
27	5304456677		Screw, M 3x25 #3, Hold Switch Mtg, (2)		Appelez-nous	-
28	5304456660		Screw, M 4x6 #2		Appelez-nous	-
29	5304456678		Screw, M 3x12 #3, (2)		Appelez-nous	-
30	5304456679		Screw-timing Adj, M 4x25 #3		Appelez-nous	-
31	5304456680		Insulator		Appelez-nous	-
32	5304456681		Plate-valve Switch		Appelez-nous	-
33	5304456682		Spring, Timing Adjust		Appelez-nous	-
34	5304456683		Screw, M 4x12 #2, (3)		Appelez-nous	-
35	5304456684		Screw				$ 31.90
36	5304456685		Cover-ice Maker		Appelez-nous	-
42	5303001199		Clamp-wiring Harness, Strain Relief, Galv Steel				$ 65.92
45	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
51	241796405		Tube-water Fill, Extension				$ 18.43
55	242252702		Valve, Solenoid, Triple			Immediately	$ 132.71
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.000, (2)   (Replaces: 5303207328)				$ 12.76
61	218721500		Bracket-leveling, Ice Maker   (Replaces: 5304456686)				$ 73.00
62	5304456687		Screw-im Brkt Mtg, Pan Hd Phillips, 8-32t X 0.375		Appelez-nous	-
64	5304455846		Clamp, 0.31 Id, Steel, Copper Wtr Line   (Replaces: 5303001549)				$ 10.63
NI	5304456693		Nut, M 3.5				$ 13.46
NI	5304456692		Washer		Appelez-nous	-
NI	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NI	5304456689		Washer   (Replaces: 5304456737)				$ 77.26
NIA	218709101		Screw, Hex Head, 10-32 X 0.500				$ 6.38
NIA	5304456688		Terminal		Appelez-nous	-
NIA	5304445223		Spring Beam		Appelez-nous	-
NIA	5304455843		Harness-wiring		Appelez-nous	-
NIA	5304456690		Label, Id Plate		Appelez-nous	-
NIA	218976419		Tube-water Inlet, 5/16 - 34", Yellow, Valve To Door				$ 22.68
NIB	218976420		Tube-water Inlet, Inlet Valve, To Filter				$ 44.65
NIB	240363602		Screw-shoulder				$ 13.65
NIC	241850615		Tube-water Inlet, Inlet Valve, To I/m Inlet   (Replaces: 218976915)				$ 34.73
NIC	240542901		Cap-water Valve				$ 18.95
NID	240561701		Seal-water Inlet, Inlet Valve, To Ice Maker			Immediately	$ 20.56
