01 - Cover Sheet

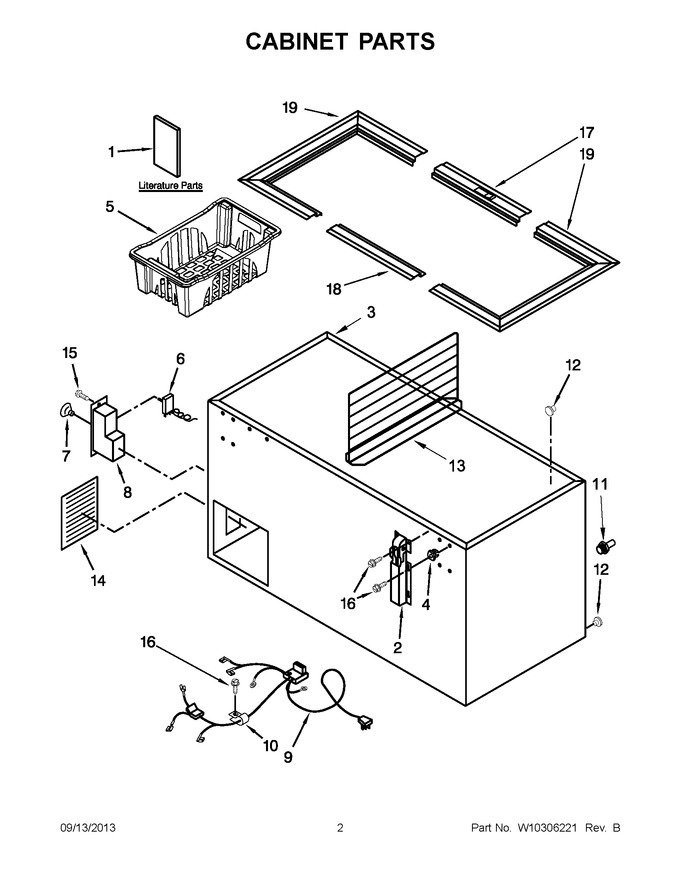

02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326794		Owners Manual		Appelez-nous	-
1	3-35740-001		Wiring Diagram		Appelez-nous	-
2	W11192197		Hinge Assembly   (Replaces: 4-34582-008)				$ 167.57
3	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	3-23995-014		Plastic, Grommet		Appelez-nous	-
5	4-36033-003		Basket, Large (upper)		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 4-35940-001)				$ 148.16
7	4-36019-001		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 4-35976-003)		Appelez-nous	-
9	4-35130-004		Harness, Wiring				$ 209.65
10	488946		Clamp   (Replaces: 3-25095-021)				$ 18.41
11	W11663505		Adapter, Drain   (Replaces: 1-33178)				$ 15.45
12	3-33211-001		Drain Plug				$ 10.63
13	4356477		Divider (optional)		Appelez-nous	-
14	4-35099-001		Access Panel		Appelez-nous	-
15	3-24004-049		Screw		Appelez-nous	-
16	WPW10031790		Screw   (Replaces: 3-24004-005)			Immediately	$ 7.87
17	4-35011-004		Breaker Strip, Front				$ 75.80
18	4-35010-004		Breaker Strip, Rear		Appelez-nous	-
19	W11045300		Breaker Strip, End   (Replaces: 4-35009-003)				$ 80.74
