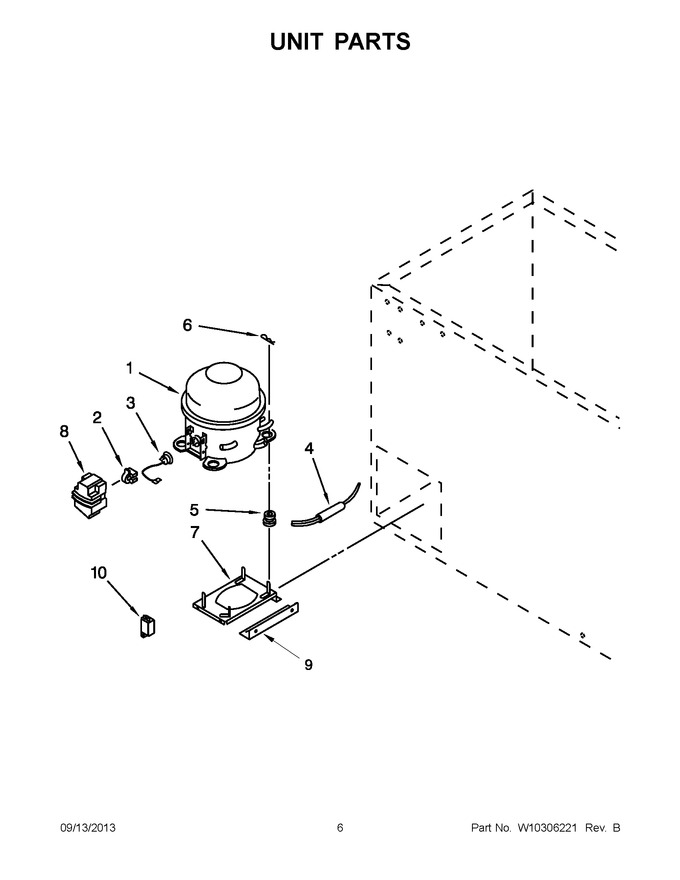

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10309989		Compressor   (Replaces: 4-32972-141)			Immediately	$ 591.26
2	WPW10189190		Relay   (Replaces: 2-35154-010)			Immediately	$ 118.16
3	2-34286-039		Overload				$ 155.37
4	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 47.31
5	WP2163786		Grommet, Compressor   (Replaces: 13146462)				$ 7.16
6	A201435		Clip, Compressor Mounting		Appelez-nous	-
7	4-35083-001		Compressor Base		Appelez-nous	-
8	W10393770		Cover   (Replaces: 3-35171-003)				$ 98.67
9	3-81556-001		Brace		Appelez-nous	-
10	8210309		Capacitor		Appelez-nous	-
NI	N/P		Refrigerant Charge 4.8 Oz. (r-134a)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
