SELECT A DIAGRAM

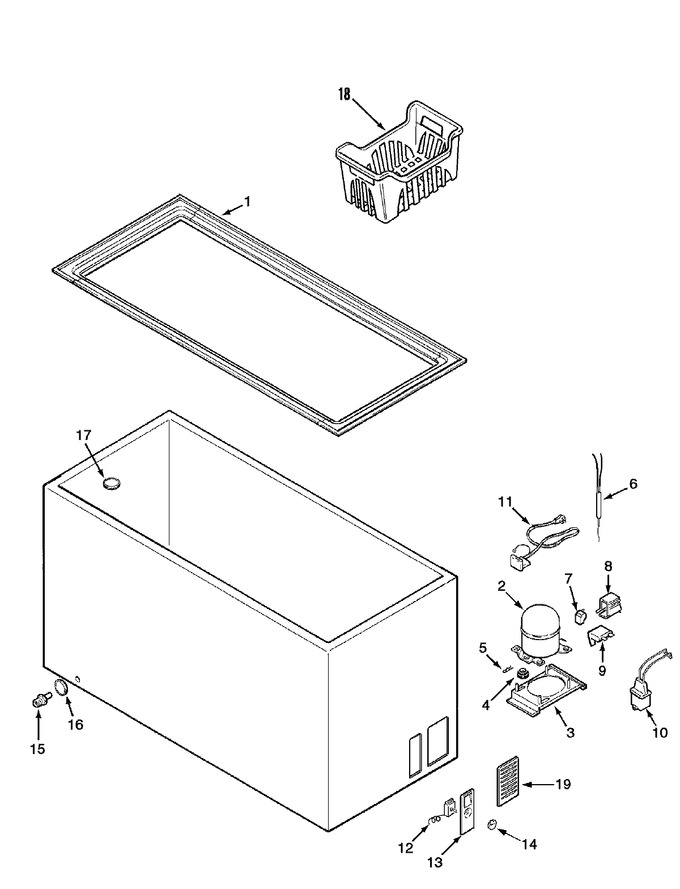

01 - Cabinet
02 - Lid
03 - Supplemental Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4-35011-004 | Breaker Strip (frt.) (Replaces: 68001183) | 10 |
|
$ 75.80 | ||||
| 1 | W11045300 | Breaker Strip (end) (Replaces: 68001184) | 10 |
|
$ 80.74 | ||||
| 1 | 4-35010-004 | Breaker Strip (back) (Replaces: 68001185) | 10 |
|
- | ||||
| 2 | W10309989 | Kit, Compressor (r134a) (Replaces: 68001458) | 10 |
|
Immediately | $ 591.26 | |||
| 3 | 68001166 | Base, Compressor | 10 |
|
- | ||||
| 3 | 3-81556-001 | Bracket, Base (Replaces: 68001631) | 10 |
|
- | ||||
| 4 | Y09100025 | Grommet, Compressor | 10 |
|
- | ||||
| 5 | Y09100099 | Clip, Compressor | 10 |
|
- | ||||
| 6 | WPW10143759 | Drier (Replaces: 13900-1) | 10 |
|
Immediately | $ 27.70 | |||
| 7 | 68001368 | Relay, Start | 10 |
|
- | ||||
| 8 | 2217635 | Cover, Terminal (Replaces: 68001478) | 10 |
|
- | ||||
| 9 | WP2214067 | Overload (Replaces: 68001459) | 10 |
|
$ 118.49 | ||||
| 10 | 68001701 | Capacitor, Run (w/wires) | 10 |
|
- | ||||
| 11 | 4-35136-002 | Wire Harness W/power Cord (Replaces: R0000143) | 10 |
|
$ 213.24 | ||||
| 11 | W10833902 | Clamp (Replaces: 68001707) | 10 |
|
$ 9.89 | ||||
| 12 | WP4-35940-001 | Control, Temperature (Replaces: 68001451) | 10 |
|
$ 148.16 | ||||
| 13 | W10682894 | Box, Temp. Control (Replaces: 68001633) | 10 |
|
- | ||||
| 13 | 3-24004-049 | Screw (Replaces: 68001170) | 10 |
|
- | ||||
| 14 | 68001169 | Clip, Knob | 10 |
|
- | ||||
| 14 | 68001452 | Knob, Temp. Control | 10 |
|
- | ||||
| 15 | W11663505 | Adapter, Drain (Replaces: Y09100110) | 10 |
|
$ 15.45 | ||||
| 16 | 68001312 | Cap, Drain | 10 |
|
- | ||||
| 17 | 68001312 | Cap, Drain | 10 |
|
- | ||||
| 18 | 68001709 | Basket, Upper (lg-plastic) | 10 |
|
$ 74.76 | ||||
| 19 | 68001129 | Panel, Access | 10 |
|
- |
