SELECT A DIAGRAM

01 - Cabinet


02 - Lid


03 - Supplemental Information

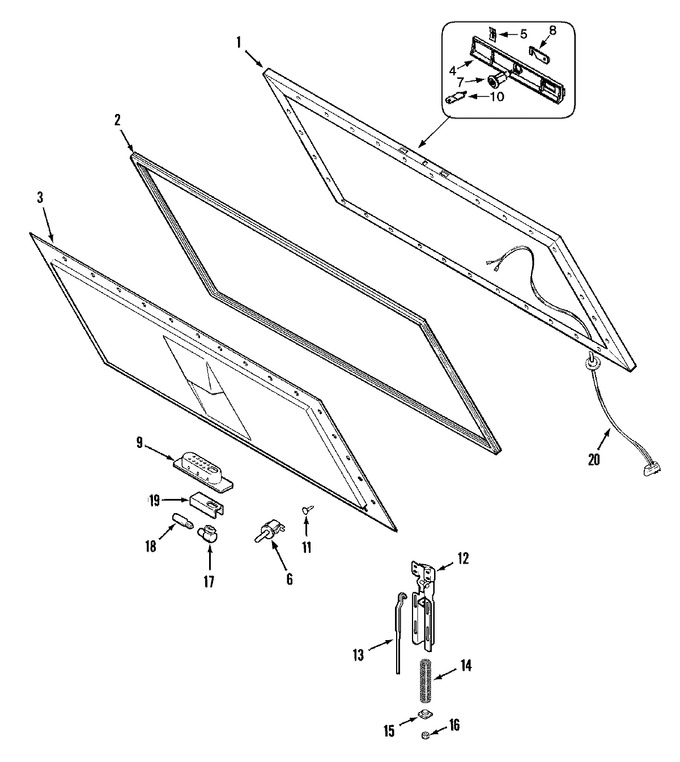

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68001580		Lid Kit (wht)	10	Appelez-nous	-
2	68001176		Gasket Kit (wht)	10	Appelez-nous	-
3	R0651015		Liner Kit	10	Appelez-nous	-
4	R0660008		Nameplate (amana)	10	Appelez-nous	-
4	68001615		Handle Kit	10	Appelez-nous	-
5	Y09100002		Clip, Handle	10	Appelez-nous	-
6	W10917237		Switch, Light   (Replaces: 68001449)	10			$ 39.14
7	68001012		Clip, Lock	10	Appelez-nous	-
7	3-35284-001		Lock Kit   (Replaces: 68001445)	10			$ 24.42
8	W11233072		Screw   (Replaces: 68001156)	10		Immediately	$ 12.62
8	68001154		Hook, Lock Bolt	10	Appelez-nous	-
9	3-25693-001		Reflector Kit   (Replaces: 68001161)	10			$ 15.36
10	Y09100013		Key, Lock	10	Appelez-nous	-
11	68001346		Clip Kit, Liner	10	Appelez-nous	-
12	1-17548-006		Shim, Hinge   (Replaces: 68001171)	10			$ 18.64
12	4356491		Screw   (Replaces: Y09100105)	10	Appelez-nous	-
12	68001447		Hinge Kit (w/spring)	10	Appelez-nous	-
13	Y09100033		Tie Bolt - Hinge	10	Appelez-nous	-
14	Y09100032		Spring, Hinge	10	Appelez-nous	-
15	68001011		Guide, Hinge Spring	10	Appelez-nous	-
16	68001005		Nut, Hinge	10	Appelez-nous	-
17	68001592		Receptacle, Bulb	10	Appelez-nous	-
18	WPA3073101		Bulb, Light   (Replaces: Y09100073)	10		Immediately	$ 10.90
19	68001367		Shield, Heat	10	Appelez-nous	-
20	68001600		Wire Harness, Lid	10			$ 54.77
