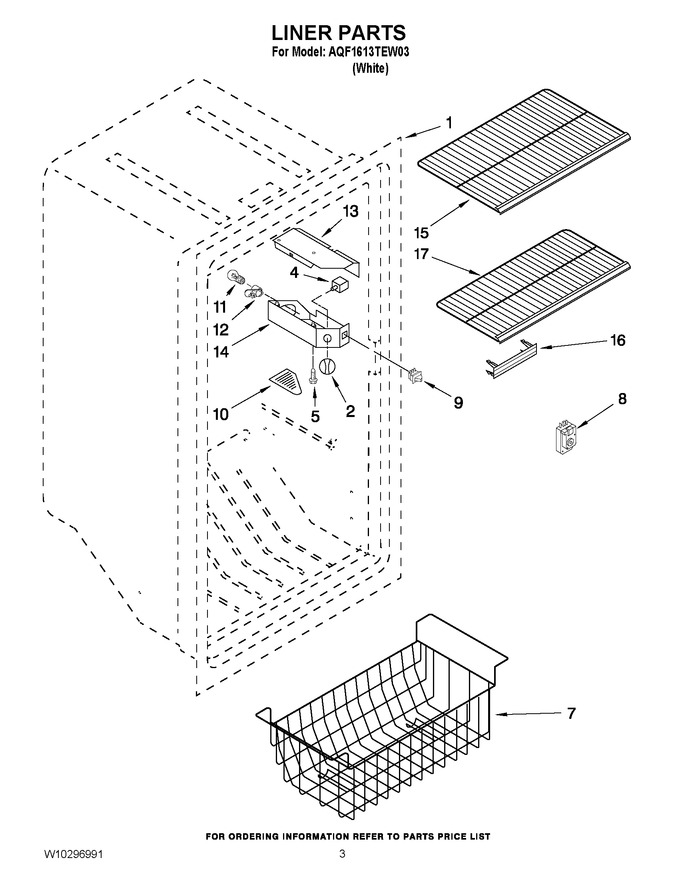

02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 25.80
4	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 220.05
5	4390798		Screw		Appelez-nous	-
7	4390621		Basket, Wire		Appelez-nous	-
8	WP3-81329		Timer, Defrost   (Replaces: 4357124)			Immediately	$ 170.69
9	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 33.51
10	8210349		Lens Light				$ 33.01
11	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 10.17
12	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 96.62
13	8210351		Shield, Light				$ 42.03
14	8210406		Box, Control		Appelez-nous	-
15	W10297045		Shelf, Upper Wire		Appelez-nous	-
16	WP3-80414-103		Vent Plug (4)   (Replaces: 4357295)				$ 11.57
17	W10297044		Shelf, Lower Wire		Appelez-nous	-
