SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts

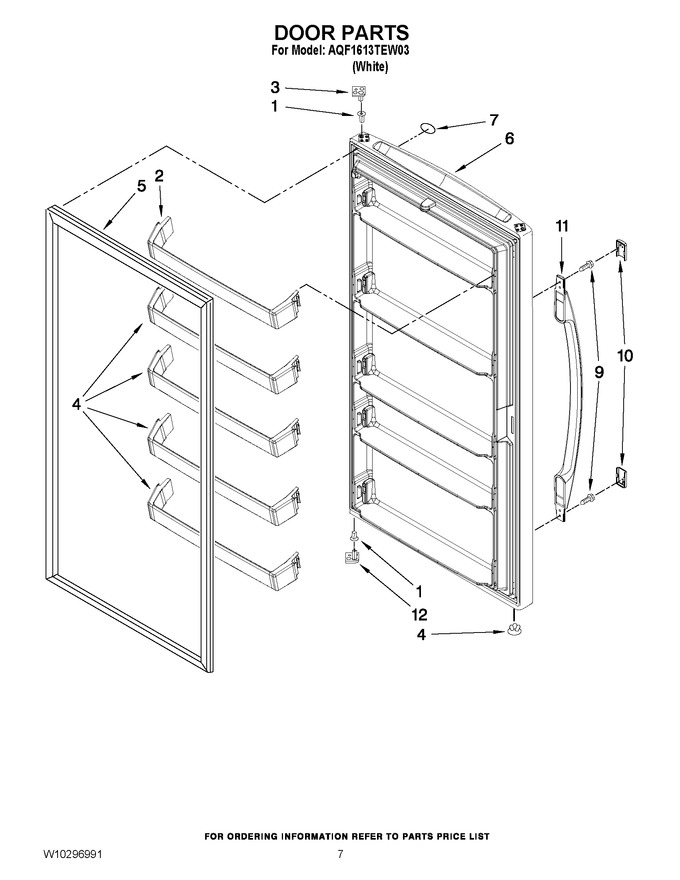

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 2 | 8210397 | Rail, Door (5) |
|
- | |||||
| 3 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 4 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 9.72 | |||||
| 5 | WP4-65151-001 | Gasket, Door (Replaces: 8210340) |
|
$ 303.88 | |||||
| 6 | 8210363 | Door Assembly (includes Interior Door Panel) |
|
$ 750.11 | |||||
| 7 | 68001748 | Nameplate |
|
- | |||||
| 9 | W11772394 | Screw (Replaces: 3-24004-091) |
|
Immediately | $ 10.94 | ||||
| 10 | 2-82012-001 | Trim, Handle |
|
$ 10.34 | |||||
| 11 | 3-82013-003 | Handle Assembly |
|
$ 69.49 | |||||
| 12 | 8210400 | Stop, Door (lower) |
|
- |
