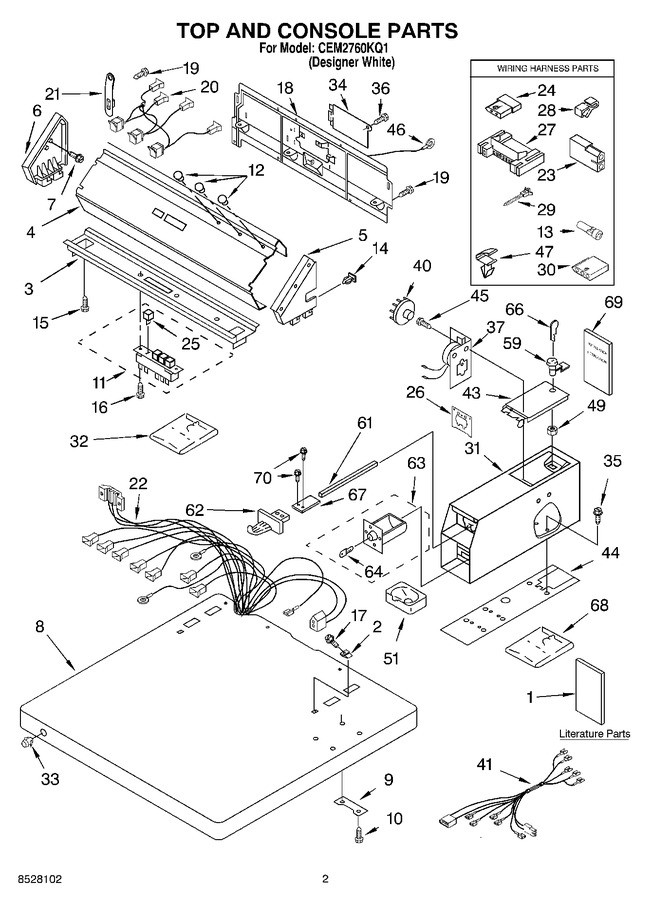

02 - Top And Console, Literature


03 - Cabinet


04 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8315969		Label, Wiring Diagram		Appelez-nous	-
1	LIT8528102		Service Parts List		Appelez-nous	-
1	LIT8527795		Instructions, Installation		Appelez-nous	-
2	WP357213		Nut,push-in   (Replaces: 357213)				$ 6.65
3	3361029		Bracket, Control				$ 34.04
4	8316634		Panel, Control				$ 256.07
5	8316516		Cap, End (r.h.)		Appelez-nous	-
6	3949734		Cap, End (l.h.)		Appelez-nous	-
7	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 7.20
8	3954665		Top				$ 145.66
9	3347825		Plate-mounting (2)		Appelez-nous	-
10	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
11	WPW10330137		Switch, Pushbutton   (Replaces: 8316437)			Immediately	$ 305.60
12	WP3348109		Lens Light (amber)   (Replaces: 3348109)			Immediately	$ 11.26
13	351297		Plug, Harness		Appelez-nous	-
14	689559		Nut, Push-in		Appelez-nous	-
15	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
16	WP489128		Screw, 8-32 X 3/8   (Replaces: 303921)				$ 9.79
17	8281182		Screw 8-18 X 1-1/4				$ 5.33
18	W11089934		Panel, Rear (upper)   (Replaces: 3978608)				$ 256.84
19	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
20	8316640		Light, Indicator Assembly				$ 60.24
21	WP8568314		Strap, Console   (Replaces: 8318255)				$ 7.00
22	8283165		Harness, Main		Appelez-nous	-
23	717252		Receptacle, 2 Way		Appelez-nous	-
24	717253		Receptacle (2-way)		Appelez-nous	-
25	WPW10330137		Pushbutton   (Replaces: 8316433)			Immediately	$ 305.60
26	279950		Plate, Chute Adapter (includes Illus. 51)   (Replaces: 3954761)			Immediately	$ 26.00
27	3395683		Housing Connector			Immediately	$ 46.67
28	W10113937		Clip, Ground   (Replaces: 357572)				$ 9.75
29	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 28.66
30	353424		Connector, 3-circuit				$ 18.95
31	WPW10461200		Case, Meter   (Replaces: 3406994)			Immediately	$ 344.90
32	WP3406965		Kit, Vertical 8-coin (includes Illus. 59-62-63 66-67-68 & 69)   (Replaces: 3954807)			Immediately	$ 358.66
33	358290		Top Lock		Appelez-nous	-
33	387371		Lock, Plug Also Available				$ 11.36
34	WPW10119283		Cover, Terminal Block   (Replaces: 8317342)				$ 115.52
35	W11715721		Screw, 5/16-24 X 1   (Replaces: 3349065)				$ 6.41
36	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.04
37	279737		Timer, (includes 4-pin Cam)   (Replaces: 3387975)			Immediately	$ 280.89
40	WP339855		Timing Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 7.53
40	51-161-6		Timing Cam (6-pin (30 Min) Also Available)   (Replaces: 343777)				$ 31.07
40	WP339854		Timing Cam (9 Pin (20 Min.))   (Replaces: 339854)				$ 5.83
40	WP339853		Timing Cam (12-pin (15 Min))   (Replaces: 339853)				$ 6.95
40	WP3387974		Timing Cam (3-pin (60 Min))   (Replaces: 3387974)				$ 7.49
41	3401682		Harness, Timer				$ 75.67
43	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
44	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 27.99
45	339805		Screw, 10-32 X 3/16				$ 12.05
46	3398893		Ground Wire		Appelez-nous	-
47	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.01
49	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
51	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 66.78
59	W11315637		Security Lock/key And Cam Assembly   (Replaces: 8316526)			Immediately	$ 36.42
61	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 67.13
62	8316265		.25		Appelez-nous	-
62	W11126319		Slide Mechanism (vertical 8-coin) (dollar Vend)   (Replaces: 8316520)			Immediately	$ 279.80
62	W11312584		Inserts (not Shown) (blank)   (Replaces: 8316264)				$ 28.26
63	W11190039		Money Box W/lock   (Replaces: 8316525)			Immediately	$ 160.25
67	3390424		Extension   (Replaces: 8316523)			Immediately	$ 61.43
68	8316524		Kit, Decal		Appelez-nous	-
69	8316532		Installation Instructions Coin Kit		Appelez-nous	-
70	3400086		Screw, 10-32 X 3/8				$ 12.77
