SELECT A DIAGRAM
01 - Front Cover
02 - Top And Console, Literature
03 - Cabinet

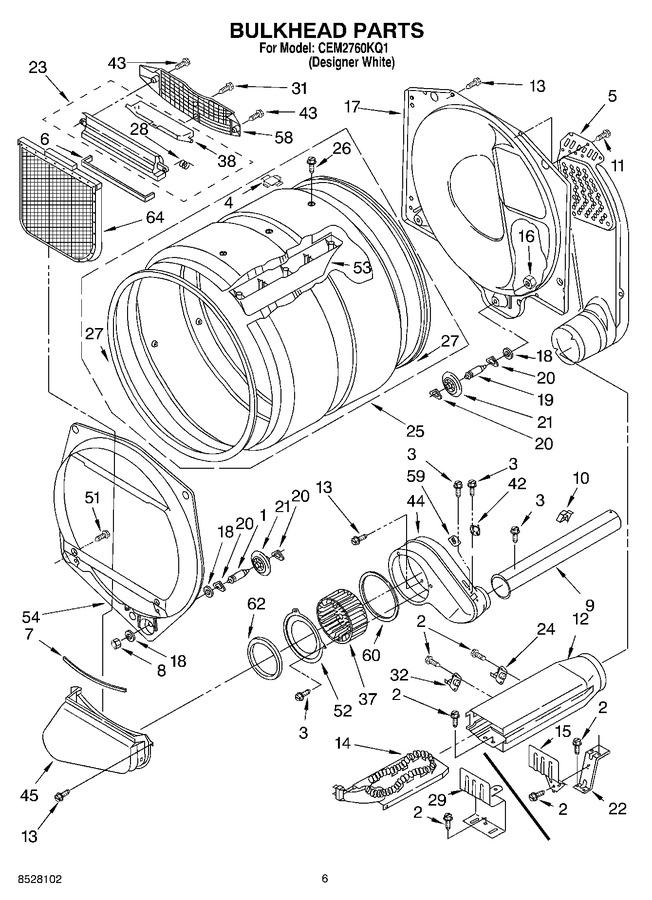

04 - Bulkhead
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 3399508) |
|
Immediately | $ 55.99 | ||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 6.75 | |||||
| 4 | 8066086 | Drum, Hole Plug |
|
$ 9.68 | |||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 280.55 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.17 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.17 | ||||
| 8 | WP3359452 | Nut, 3/8 X 16 (r.h.) (Replaces: 3359452) |
|
Immediately | $ 6.47 | ||||
| 9 | 279936 | Exhaust Pipe (Replaces: 8318486) |
|
$ 132.16 | |||||
| 10 | WP3388229 | Clip (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 11 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 12 | W10802681 | Box, Heater (Replaces: 3392537) |
|
Immediately | $ 116.70 | ||||
| 13 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 14 | W10864898 | Element, Heater (Replaces: 3387748) |
|
$ 287.66 | |||||
| 15 | 697699 | Shield, Heat |
|
- | |||||
| 16 | 3387709 | Nut, 3/8-16 (l.h.) |
|
$ 5.60 | |||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 315.10 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 12.63 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 3399509) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 25.65 | ||||
| 22 | 697700 | Bracket, Heater |
|
- | |||||
| 23 | W11129408 | Housing,outlet (Replaces: 3394985) |
|
$ 47.95 | |||||
| 24 | 279973 | Thermal Cut-off (includes Item 32) (Replaces: 8318314) |
|
Immediately | $ 68.04 | ||||
| 25 | W10545923 | Drum Complete (Replaces: 8318215) |
|
$ 393.08 | |||||
| 26 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 7.20 | ||||
| 27 | 280114 | Seal, Drum (Replaces: 697694) |
|
Immediately | $ 63.74 | ||||
| 28 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 76.13 | |||||
| 29 | 8066099 | Bracket, Heater Box |
|
$ 21.92 | |||||
| 31 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.01 | ||||
| 32 | WP3391914 | Thermostat 295~f (146~c) (Replaces: 3391914) |
|
Immediately | $ 107.52 | ||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 53.16 | ||||
| 38 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 183.35 | ||||
| 42 | WP3387138 | Thermostat, Internal-bias (Replaces: 3387138) |
|
Immediately | $ 132.50 | ||||
| 43 | WP3387230 | Screw, 10-16 X 3/4 (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 44 | WP8544363 | Housing, Blower (Replaces: 8530038) |
|
$ 137.37 | |||||
| 45 | 8530036 | Lint Duct Assembly |
|
$ 75.27 | |||||
| 51 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 52 | 279780 | Cover, Blower (includes Illus. Nos. 60 & 62) (Replaces: 697771) |
|
$ 83.66 | |||||
| 53 | W11782150 | Baffle, Drum (3) (Replaces: 697693) |
|
Immediately | $ 81.92 | ||||
| 54 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 187.23 | |||||
| 58 | W11086603 | Grill, Outlet (Replaces: 8299979) |
|
Immediately | $ 31.63 | ||||
| 59 | WP3390719 | Thermal-fuse (Replaces: 3390719) |
|
Immediately | $ 28.41 | ||||
| 60 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.09 | ||||
| 62 | WP8566209 | Seal, Lint Duct (Replaces: 697769) |
|
$ 49.91 | |||||
| 64 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 64 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 64 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 10.58 | |||||
| 64 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 64 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 64 | W10120998 | Screen, Lint (Replaces: 3390721) |
|
$ 60.44 | |||||
| 64 | 4392067 | Kit, Dryer Repair |
|
Immediately | $ 56.03 |
