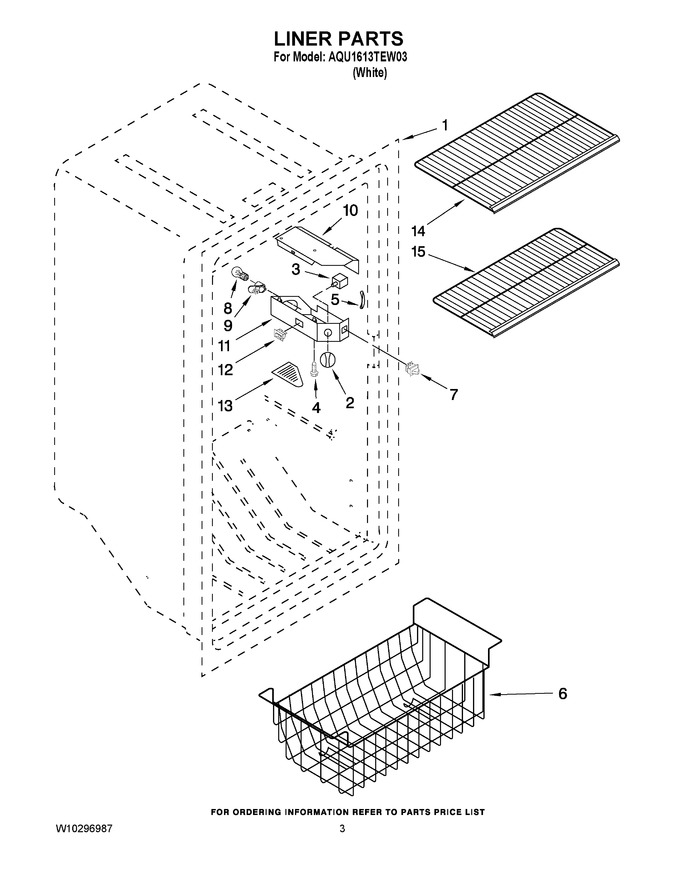

02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 25.80
3	WP4-83053-001		Thermostat   (Replaces: 8210395)				$ 218.46
4	4390798		Screw		Appelez-nous	-
5	WP2196003		Tubing   (Replaces: 8210246)				$ 7.16
6	4390621		Basket		Appelez-nous	-
7	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 33.51
8	W11679940		Light Bulb   (Replaces: 4390465)			Immediately	$ 10.17
9	WP3-82393-001		Light Socket   (Replaces: 8210350)				$ 96.62
10	8210351		Shield				$ 42.03
11	W10164503		Box, Control		Appelez-nous	-
12	W10164530		Switch Alarm		Appelez-nous	-
13	8210349		Lens Light				$ 33.01
14	4-82315-001		Shelf Upper   (Replaces: 8210346)				$ 302.10
15	8210347		Shelf Lower		Appelez-nous	-
