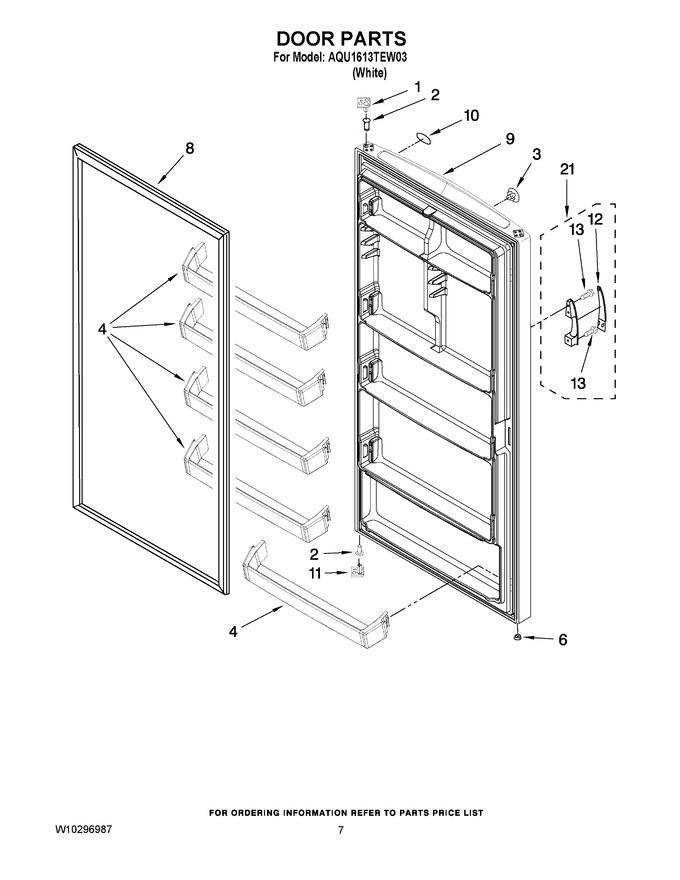

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210401 | Stop, Door (top) (white) |
|
- | |||||
| 2 | 4390731 | Hinge, Bushing |
|
$ 19.69 | |||||
| 3 | WP2189000 | Plug-handle (Replaces: 4390596) |
|
Immediately | $ 6.66 | ||||
| 4 | 8210397 | Rail, Door (5) |
|
- | |||||
| 6 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 9.72 | |||||
| 8 | WP4-65151-001 | Gasket, Door (Replaces: 8210340) |
|
$ 303.88 | |||||
| 9 | 8210363 | Door Assembly (includes Interior Liner) |
|
$ 750.11 | |||||
| 10 | 68001748 | Nameplate |
|
- | |||||
| 11 | 8210400 | Stop, Door (bottom) (natural) |
|
- | |||||
| 12 | 4390668 | Insert, Handle |
|
- | |||||
| 13 | WP489491 | Screw (Replaces: 4390669) |
|
$ 6.26 | |||||
| 21 | 4390667 | Handle Assembly (includes Items 12 & 13) |
|
- |
