SELECT A DIAGRAM

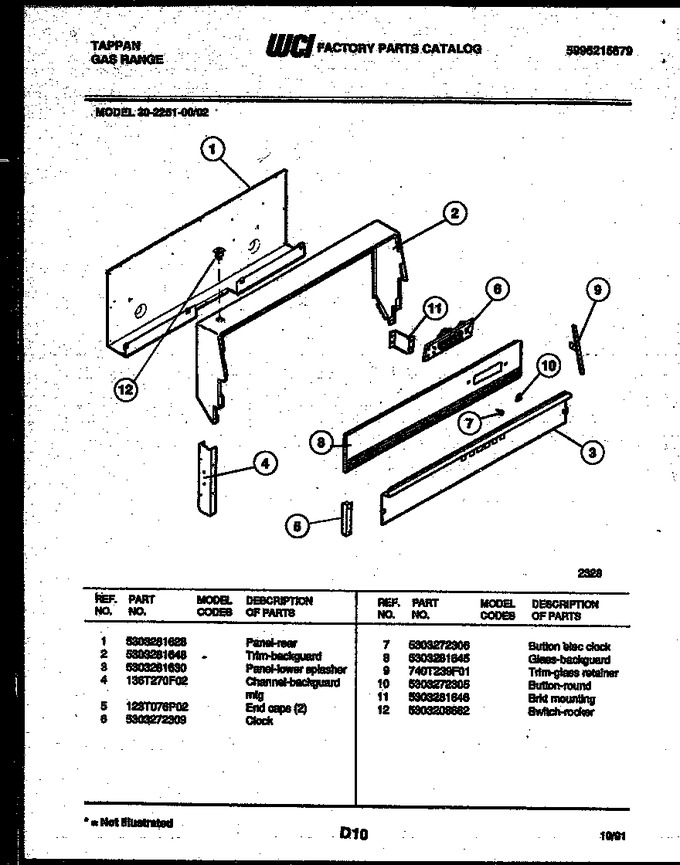

02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303281628 | Panel-rear |
|
- | |||||
| 2 | 5303281648 | Trim-backguard |
|
- | |||||
| 3 | 5303281630 | Panel-lower Splasher |
|
- | |||||
| 4 | 136T270F02 | Channel-backguard Mtg. |
|
- | |||||
| 5 | 123T076P02 | End Caps (2) |
|
- | |||||
| 6 | 5303272309 | Clock |
|
- | |||||
| 7 | 5303272306 | Button Elec Clock |
|
- | |||||
| 8 | 5303281645 | Glass-backguard |
|
- | |||||
| 9 | 740T239F01 | Trim-glass Retainer |
|
- | |||||
| 10 | 5303272305 | Button-round |
|
$ 38.80 | |||||
| 11 | 5303281646 | Brkt Mounting |
|
- | |||||
| 12 | 5303208662 | Switch-rocker |
|
- |
