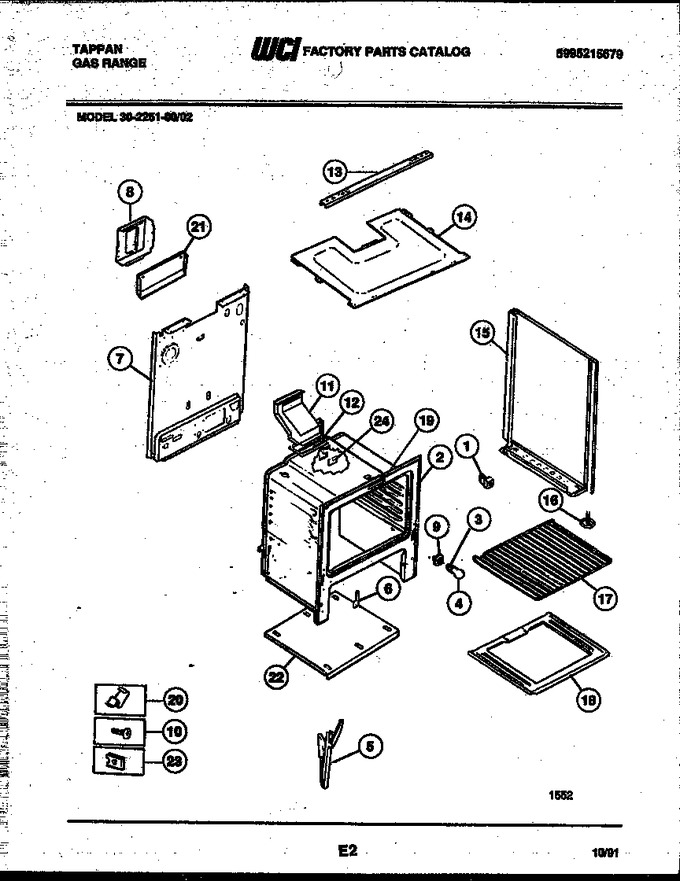

SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Broiler Drawer Parts


05 - Door Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer, B/s (8)				$ 3.62
3	3014073		Socket-oven Light		Appelez-nous	-
4	5303208582		Light Bulb		Appelez-nous	-
5	316007000		Channel - Dr Hng (2)		Appelez-nous	-
6	3131570		Cover Hng. Cutout (2)				$ 7.35
7	3203082		Back-main		Appelez-nous	-
8	3131660		Shield, Rear Wall		Appelez-nous	-
9	5303271606		Housing,oven Light		Appelez-nous	-
10	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
11	3131904		Flue		Appelez-nous	-
12	08067965		Gasket-flue		Appelez-nous	-
13	3203441		Channel-burner Sprt		Appelez-nous	-
14	3204962		Burner Box		Appelez-nous	-
15	5303269543		Panel-bodyside Rh (almond)		Appelez-nous	-
16	5303203397		Screw-levelling (4)				$ 14.49
17	5303281625		Rack-oven (2)		Appelez-nous	-
18	5303212540		Bottom, Oven		Appelez-nous	-
19	5303015372		Cover, Front Main		Appelez-nous	-
20	08067962		Fastener-wire		Appelez-nous	-
21	5303280614		Shield-flue		Appelez-nous	-
22	5303281627		Base-broil		Appelez-nous	-
23	3012323		Fastener-hinge		Appelez-nous	-
24	3018607		Cover Plate				$ 10.50
*62073	08010570		Fastener, Leveling Leg Tee Nut		Appelez-nous	-
*62073	19100200032		Diagram-wiring (not For Purchase)		Appelez-nous	-
*62073	3202799		Shield, Flue		Appelez-nous	-
15A	5303269545		Panel Bodyside Lh (almond)		Appelez-nous	-
18A	3017142		Insulation, Oven Wrap (non-illustrated)				$ 193.50
18B	3203541		Insulation, Oven Back (non-illustrated)		Appelez-nous	-
19A	08067961		Fastener-power Cord		Appelez-nous	-
21A	3014226		Support-oven Btm (non-illustrated)		Appelez-nous	-
22A	3931015		Anti-tip Bracket (non-illustrated)		Appelez-nous	-
22B	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-
6A	5304534377		Cord, Power (non-illustrated)   (Replaces: 3202006)				$ 26.85

    View Diagram in Separate Window       Print Part List
