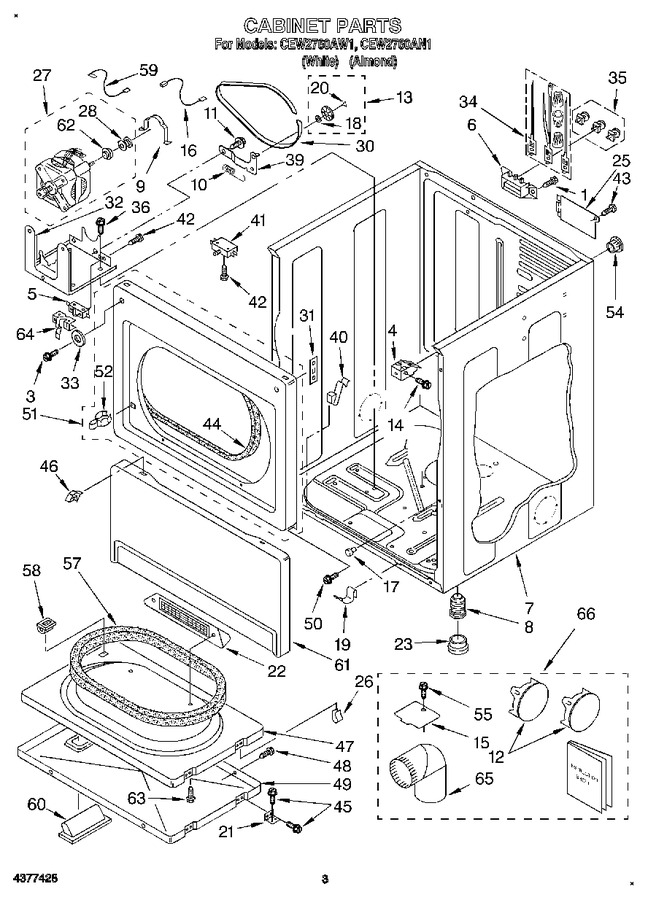

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 3 | WP3373329 | Screw, 10-16 X 1/2 (Replaces: 3393258) |
|
$ 6.91 | |||||
| 4 | 3391846 | Clip, Front Panel (2) |
|
$ 19.04 | |||||
| 5 | 279782 | Switch, Broken Belt (Replaces: 3394881) |
|
Immediately | $ 49.00 | ||||
| 6 | 279320 | Block, Terminal (Replaces: 690261) |
|
Immediately | $ 61.43 | ||||
| 7 | 3402264 | Cabinet (white) |
|
- | |||||
| 7 | 3402265 | Cabinet (almond) |
|
- | |||||
| 8 | 49621 | Foot, Dryer (plastic) (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 22.11 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.22 | |||||
| 12 | W10470674 | Plug, Multivent (white) (Replaces: 697750) |
|
Immediately | $ 68.99 | ||||
| 12 | WPW10404617 | Plug, Multivent (almond) (Replaces: 697751) |
|
$ 64.78 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 29.26 | ||||
| 14 | WP3387230 | Screw, 10-16 X 7/8 (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 15 | WPW10354249 | Plate, Cover (Replaces: 3389808) |
|
$ 8.06 | |||||
| 16 | 3394081 | Wire, Belt Switch |
|
$ 37.57 | |||||
| 17 | 693152 | Bumper |
|
$ 9.86 | |||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 7.16 | ||||
| 19 | WP297092 | Clip (2) (Replaces: 297092) |
|
Immediately | $ 7.42 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 21 | W11175815 | Hinge And Pin (2) (Replaces: 3389247) |
|
$ 73.27 | |||||
| 22 | 3391611 | Grill |
|
- | |||||
| 23 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.04 | |||||
| 25 | 3393904 | Cover, Terminal Block |
|
- | |||||
| 26 | 3389249 | Nut, ``u`` (4) |
|
- | |||||
| 27 | W10841144 | Motor Assembly 60 Hz. (Replaces: 3395656) |
|
Immediately | $ 210.88 | ||||
| 28 | WP8066184 | Pulley, Motor (Replaces: 3389627) |
|
Immediately | $ 45.92 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 661570) |
|
Immediately | $ 29.53 | ||||
| 31 | WP3390902 | Clip, Door Hinge (2) (Replaces: 3390902) |
|
$ 10.00 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 120.23 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 8.70 | |||||
| 34 | 279318 | Terminal, Brass & Tinned (3) (includes Ill. 35) |
|
Immediately | $ 90.89 | ||||
| 35 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 36 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 3390663) |
|
Immediately | $ 7.07 | ||||
| 39 | W10837240 | Bracket, Idler (Replaces: 3388674) |
|
Immediately | $ 32.20 | ||||
| 40 | 3388600 | Clip, Lint Duct |
|
- | |||||
| 41 | WP3391902 | Switch, Door (includes Illus. No. 6) (Replaces: 3391901) |
|
Immediately | $ 53.86 | ||||
| 42 | WP98129 | Screw (Replaces: 98129) |
|
$ 6.80 | |||||
| 43 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.04 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 45 | WP488627 | Screw, 10-32 X 1/2 (Replaces: 342055) |
|
$ 6.81 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 47 | 3393681 | Door, Rear |
|
- | |||||
| 48 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 49 | W11663440 | Door, Front (white) (Replaces: 3387872) |
|
$ 233.43 | |||||
| 49 | 3387873 | Door, Front (almond) |
|
- | |||||
| 50 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.01 | ||||
| 51 | 3393081 | Lower Front Panel (white) |
|
- | |||||
| 51 | 279723 | Lower Front Panel (almond) (Replaces: 3393082) |
|
- | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 54 | 3399629 | Bushing, Snap |
|
- | |||||
| 55 | WP488729 | Screw, No. 8 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 57 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 117.54 | |||||
| 58 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 59 | 3398948 | Wire, Jumper |
|
$ 55.42 | |||||
| 60 | 3389522 | Handle, Door (white) |
|
$ 70.11 | |||||
| 60 | 3389523 | Handle, Door (almond) |
|
- | |||||
| 61 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 214.50 | |||||
| 61 | 697216 | Panel, Toe (almond) |
|
- | |||||
| 62 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 63 | 697777 | Screw, 11-16 X 7/8 |
|
- | |||||
| 64 | WP8066120 | Lever, Snap Switch (Replaces: 3391408) |
|
Immediately | $ 29.80 | ||||
| 65 | 279731 | 4`` - 90 Elbow |
|
- | |||||
| 66 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (black) (Replaces: 279820) |
|
Immediately | $ 68.99 | ||||
| 66 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 68.99 | ||||
| 66 | W10470674 | Almond (Replaces: 279819) |
|
Immediately | $ 68.99 |
