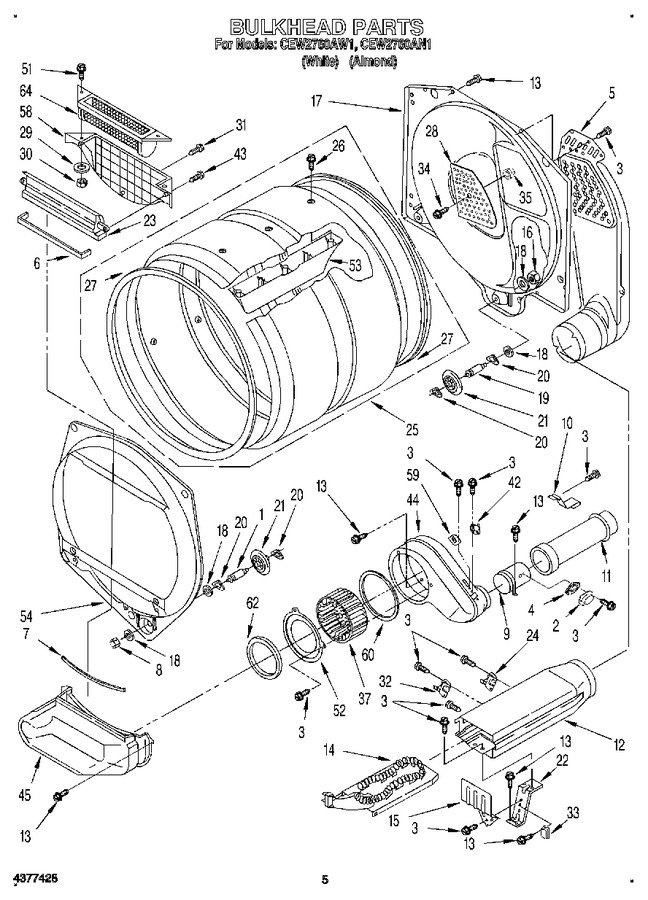

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 3387460)			Immediately	$ 55.99
2	660762		Thermostat, 140~f (60c)		Appelez-nous	-
3	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
4	3393475		Seal, Thermostat		Appelez-nous	-
5	WP3387911		Air Duct Assembly (note: Also Order Illus. No.35)   (Replaces: 697354)				$ 280.55
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.17
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 7.17
8	WP3359452		Nut, 3/8 X 16 (r.h.)   (Replaces: 3359452)			Immediately	$ 6.47
9	3396191		Exhaust Pipe Assembly		Appelez-nous	-
10	WP3395536		Clip, Multivent   (Replaces: 3395536)				$ 73.09
11	3395997		Extension, Exhaust Pipe		Appelez-nous	-
12	W10802681		Box, Heater   (Replaces: 3392537)			Immediately	$ 116.70
13	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
14	W10864898		Element, Heater   (Replaces: 3387748)				$ 287.66
15	697699		Shield, Heat		Appelez-nous	-
16	3387709		Nut, 3/8-16 (l.h.)				$ 5.60
17	W11299300		Bulkhead, Rear   (Replaces: 3389347)				$ 315.10
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 12.63
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 3387707)			Immediately	$ 52.63
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 7.92
21	WPW10314173		Support, Roller   (Replaces: 3396801)			Immediately	$ 25.65
22	3393471		Bracket, Heater		Appelez-nous	-
23	697768		Housing, Outlet		Appelez-nous	-
24	279973		Cut-off, Thermal   (Replaces: 3391913)			Immediately	$ 68.04
25	W10545924		Drum Complete   (Replaces: 3393317)				$ 391.55
26	697777		Screw, 11-16 X 7/8		Appelez-nous	-
27	280114		Seal, Drum   (Replaces: 697694)			Immediately	$ 63.74
28	3393304		Cover, Air Duct (includes Illus. Nos. 34 & 35)		Appelez-nous	-
29	3391948		Washer, No. 10		Appelez-nous	-
30	120614		Nut, Hex		Appelez-nous	-
31	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 7.01
32	WP3391914		Thermostat 295~f (146~c)   (Replaces: 3391914)			Immediately	$ 107.52
33	WP8566493		Relay, Power   (Replaces: 697812)				$ 81.32
34	342043		Screw, 10-32 X 3/8		Appelez-nous	-
35	3393259		Push-nut		Appelez-nous	-
37	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 53.16
42	WP3387138		Thermostat, Internal-bias   (Replaces: 3387138)			Immediately	$ 132.50
43	WP3387230		Screw, 10-16 X 3/4   (Replaces: 3387230)			Immediately	$ 7.69
44	WP8544363		Housing, Blower   (Replaces: 697363)				$ 137.37
45	3390531		Lint Duct Assembly		Appelez-nous	-
51	WP179051		Screw   (Replaces: 179051)			Immediately	$ 7.16
52	279780		Cover, Blower (includes Illus. Nos. 60 & 62)   (Replaces: 697771)				$ 83.66
53	3393316		Baffle, Drum (3)		Appelez-nous	-
54	WP697557		Bulkhead, Front   (Replaces: 3389421)				$ 187.23
58	3389516		Cover, Lint Screen		Appelez-nous	-
59	WP3390719		Fuse, Thermal   (Replaces: 3390719)			Immediately	$ 28.41
60	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 7.09
62	WP8566209		Seal, Lint Duct   (Replaces: 697769)				$ 49.91
64	3389510		Screen, Lint		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	LIT3399648		Label, Wiring Diagram		Appelez-nous	-
	LIT3402325		Instructions, Installation		Appelez-nous	-
