SELECT A DIAGRAM

01 - Tub And Basket

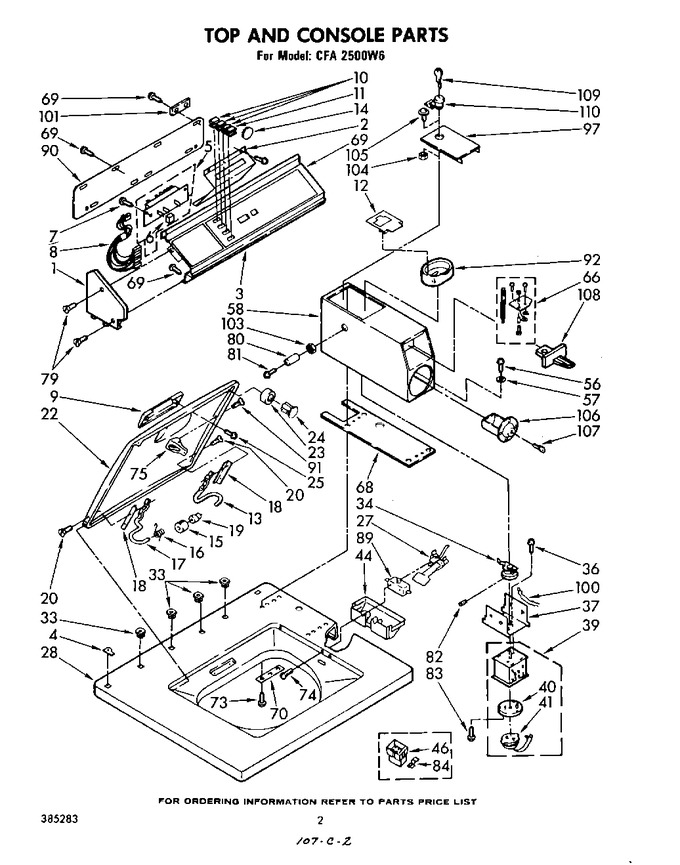

02 - Top And Console


03 - Drive


04 - Water Pump


05 - Cabinet


06 - Gear Case


07 - Basket Drive And Brake


08 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	355324		Cap, End (l.h.)		Appelez-nous	-
2	358628		Bracket, Control		Appelez-nous	-
3	358605		Billboard, Console		Appelez-nous	-
4	353878		Nut, Push-in (1)		Appelez-nous	-
5	358607		Switch, Cycle Selector		Appelez-nous	-
6	358591		Pushbutton (5)		Appelez-nous	-
7	WP965173		Screw, 8 X 3/4   (Replaces: 9424101)			Immediately	$ 9.65
8	358742		Indicator Lights Assembly		Appelez-nous	-
9	356319		Handle, Lid		Appelez-nous	-
10	301006		Lens, Amber (3)		Appelez-nous	-
11	358741		Lens, Yellow (1)		Appelez-nous	-
12	357616		Shield, Coin Funnel		Appelez-nous	-
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
14	54690		Plug, Button		Appelez-nous	-
15	19119		Bumper, Lid Hinge				$ 5.75
16	DE81-05611A		Spring, L.h.   (Replaces: 92398)				$ 150.30
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge (2)   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw & Washer   (Replaces: 355274)			Immediately	$ 6.47
22	378802		Lid (almond)		Appelez-nous	-
22	373115		Lid (white)		Appelez-nous	-
22	373211		Lid (golden Harvest)		Appelez-nous	-
22	373210		Lid (new Avocado)		Appelez-nous	-
23	356908		Bumper				$ 8.35
24	WP356907		Rivet, Plastic   (Replaces: 356907)				$ 6.66
25	WP355214		Screw & Washer   (Replaces: 355214)			Immediately	$ 7.26
27	370959		Switch Actuator Assembly				$ 33.01
28	377862		Top (new Avocado)		Appelez-nous	-
28	377863		Top (golden Harvest)		Appelez-nous	-
28	372970		Top (white)		Appelez-nous	-
28	359498		Top (almond)		Appelez-nous	-
33	98219		Nut, Push-in (4)		Appelez-nous	-
34	365173		Clutch, Timer		Appelez-nous	-
36	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.13
37	357617		Bracket, Timer		Appelez-nous	-
39	359257CP		Timer, 60 Hz.   (Replaces: 359257)		Appelez-nous	-
40	369257		Escapement		Appelez-nous	-
41	372178		Motor, Timer		Appelez-nous	-
44	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
46	94697		Cap, Terminal		Appelez-nous	-
56	356599		Bolt, 5/16-24 X 3/4		Appelez-nous	-
57	138485		Lockwasher, 5/16		Appelez-nous	-
58	385459		Meter Case Assembly (white)		Appelez-nous	-
58	385462		Meter Case Assembly (golden Harvest)		Appelez-nous	-
58	385461		Meter Case Assembly (new Avocado)		Appelez-nous	-
58	385460		Meter Case Assembly (almond)		Appelez-nous	-
66	359479		Slide Extension Bag Assembly		Appelez-nous	-
68	WP3954812		Cushion, Console   (Replaces: 357128)				$ 27.99
69	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
70	DD81-03277A		Plate & Nut Assembly   (Replaces: 83701)				$ 1.66
73	90057		Screw		Appelez-nous	-
74	354764		Screw & Washer		Appelez-nous	-
75	357633		Strike, Lid Switch		Appelez-nous	-
79	WP355515		Screw   (Replaces: 98057)				$ 6.90
80	357725		Stop, Lid		Appelez-nous	-
81	132852		Screw, 10-24 X 1-1/4		Appelez-nous	-
82	98654		Setscrew, 10-32		Appelez-nous	-
83	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
84	WP90016		Clip   (Replaces: 90016)				$ 10.19
89	00-6163		Switch, Lid (alt.)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid   (Replaces: 660308)			Immediately	$ 27.45
89	W10820036		Switch, Lid (alt.)   (Replaces: 367034)			Immediately	$ 27.45
89	W10820036		Switch, Lid (alt.)   (Replaces: 364091)			Immediately	$ 27.45
90	356441		Panel, Rear Billboard		Appelez-nous	-
91	354975		Screw & Washer		Appelez-nous	-
92	355446		Coin Funnel		Appelez-nous	-
97	377868		Door, Service (golden Harvest)		Appelez-nous	-
97	W11283272		Door, Service (white)   (Replaces: 372510)				$ 95.29
97	377867		Door, Service (new Avocado)		Appelez-nous	-
97	359501		Door, Service (almond)		Appelez-nous	-
100	355635		Guide, Slide Mechanism		Appelez-nous	-
101	357856		Strap, Support		Appelez-nous	-
103	W10080180		Nut, 10-24   (Replaces: 120361)				$ 12.13
104	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
105	358409		Screw & Washer Assembly		Appelez-nous	-
107	8-1400-2		Money Box With Lock (abloy)		Appelez-nous	-
107	8-1400-6		Money Box With Lock (rampart)		Appelez-nous	-
107	8-1400-5		Money Box With Lock (cop-lok)		Appelez-nous	-
107	8-1400-4		Money Box With Lock (medeco)		Appelez-nous	-
107	8-1400-3		Money Box With Lock (illinois Duo)		Appelez-nous	-
107	8-1400-1		Money Box With Lock (greenwald)		Appelez-nous	-
108	12-1212		Slide Mechanism Chute (when Ordering Specify Number Of Coins & Denomination) (stack Chute)		Appelez-nous	-
108	11-1010		Slide Mechanism Chute (when Ordering Specify Number Of Coins & Denomination) (single Coin Chute)		Appelez-nous	-
108	12-1010		Slide Mechanism Chute (when Ordering Specify Number Of Coins & Denomination) (double Coin Chute)		Appelez-nous	-
108	12-1030		Slide Mechanism Chute (when Ordering Specify Number Of Coins & Denomination) (triple Coin Chute)		Appelez-nous	-
108	11-1111		Slide Mechanism Chute (when Ordering Specify Number Of Coins & Denomination) (tokett 1 Chute)				$ 260.24
108	11-1115		Slide Mechanism Chute (when Ordering Specify Number Of Coins & Denomination) (tokett 2 Chute)			Immediately	$ 14,204.42
109	8-20		Key (service Door)				$ 51.32
110	68-1124		Security Lock & Cam Assembly		Appelez-nous	-
110	20198		Security Lock & Cam Assembly		Appelez-nous	-
	37559		Money Box With Lock (when Ordering Money Box Specify Series ``200`` & Vendor Of Lock) (gem)		Appelez-nous	-
	37737		Money Box With Lock (when Ordering Money Box Specify Series ``200`` & Vendor Of Lock) (ucm)		Appelez-nous	-
	37557		Money Box With Lock (when Ordering Money Box Specify Series ``200`` & Vendor Of Lock) (abloy)		Appelez-nous	-
	37560		Money Box With Lock (when Ordering Money Box Specify Series ``200`` & Vendor Of Lock) (medeco)		Appelez-nous	-
	37803		Money Box With Lock (when Ordering Money Box Specify Series ``200`` & Vendor Of Lock) (illinois Duo)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
