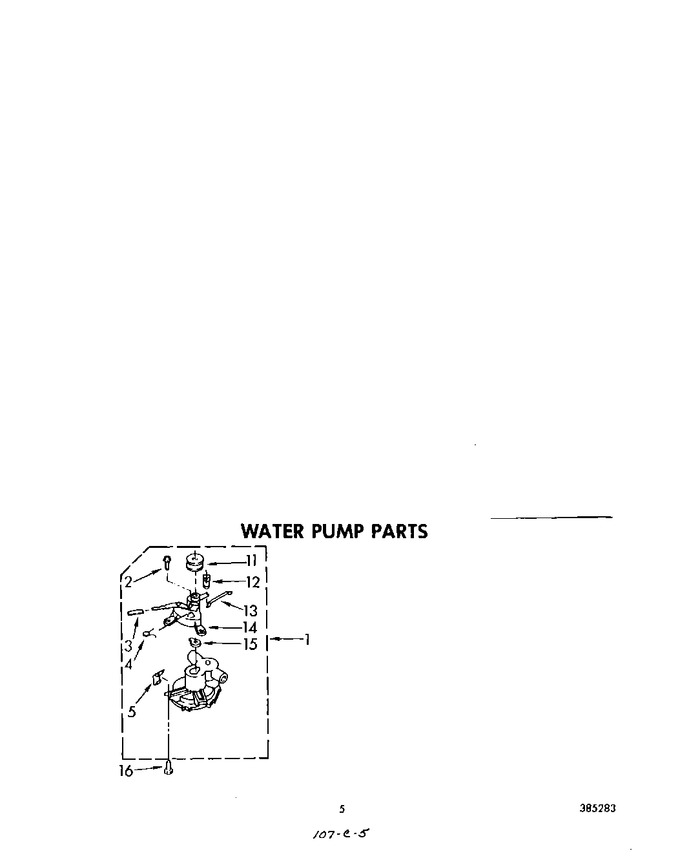

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 359131 | Pump Assembly |
|
- | |||||
| 2 | WP273556 | Screw (Replaces: 273556) |
|
Immediately | $ 7.04 | ||||
| 3 | 96175 | Sleeve |
|
- | |||||
| 4 | 96266 | Spring, Toggle |
|
- | |||||
| 5 | 96262 | Clip, Retainer |
|
- | |||||
| 11 | 359630 | Pulley |
|
- | |||||
| 12 | 355538 | Lever, Valve |
|
- | |||||
| 13 | 96264 | Rod, Connecting |
|
- | |||||
| 14 | 383750 | Bearing Block Assembly |
|
- | |||||
| 15 | 96265 | Wick, Oil |
|
- | |||||
| 16 | 386011 | Screw, Pump To Gearcase (Replaces: 96867) |
|
- |
