SELECT A DIAGRAM

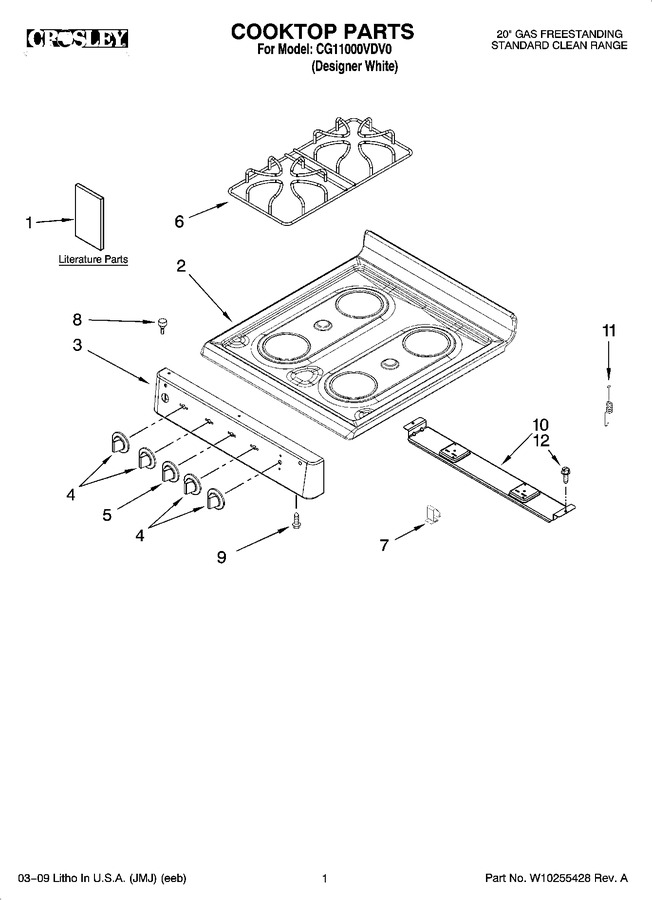

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98015589		Installation Instr (template)		Appelez-nous	-
1	W10173325		Guide, Use & Care		Appelez-nous	-
1	98007130		Safer Cooking Tips		Appelez-nous	-
1	W10173324		Instructions, Installation		Appelez-nous	-
2	W10172094		Cooktop		Appelez-nous	-
3	W10172111		Panel, Manifold		Appelez-nous	-
4	WP98006102		Knob, Burner (4)   (Replaces: 98006102)				$ 17.53
5	W10218615		Knob, Thermostat		Appelez-nous	-
6	WPW10180089		Grate, Burner (2)   (Replaces: W10171456)				$ 42.40
7	W11229684		Clip, Cooktop (2)   (Replaces: 98004722)				$ 10.67
8	W10207167		Bumper, Cooktop(2)		Appelez-nous	-
9	W11233072		Screw (3)   (Replaces: 98005000)			Immediately	$ 12.62
10	W10168363		Support, Burner		Appelez-nous	-
11	W10132429		Spring, Cooktop (2)		Appelez-nous	-
12	W10837731		Screw   (Replaces: 98006633)				$ 7.07

    View Diagram in Separate Window       Print Part List
