SELECT A DIAGRAM

01 - Cooktop Parts


02 - Backguard Parts

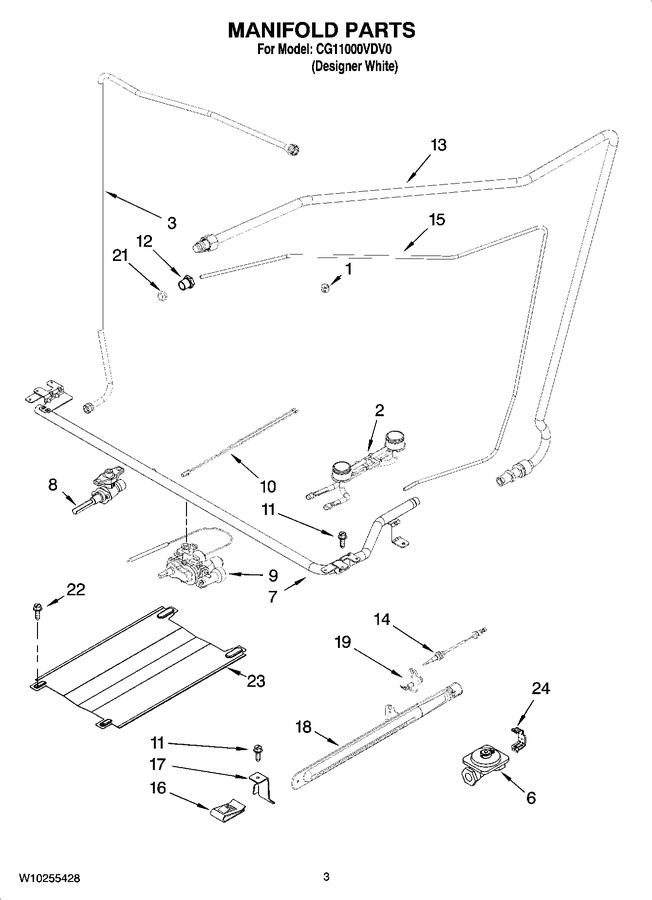

03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10128110		Cap, Pilot		Appelez-nous	-
2	W10119798		Burner, Dual		Appelez-nous	-
3	WP98017171		Tube (manifold To Regulator)   (Replaces: 98017171)				$ 233.12
6	98007462		Regulator		Appelez-nous	-
7	W10172095		Pipe, Manifold		Appelez-nous	-
8	W10121580		Valve, Burner (4)		Appelez-nous	-
9	WPW10121631		Thermostat   (Replaces: W10121631)				$ 267.78
10	W10119799		Tube, Pilot		Appelez-nous	-
11	W10837731		Screw   (Replaces: 98006633)				$ 7.07
12	98005514		Nut		Appelez-nous	-
13	W10205813		Tubing, Oven (tstat To Burner)		Appelez-nous	-
14	WPW10172085		Thermocouple Pilot   (Replaces: W10172085)				$ 448.34
15	WP98004310		Tubing, Oven (tstat To Pilot)   (Replaces: 98004310)				$ 94.03
16	98009179		U-nut				$ 12.02
17	98013314		Locator, Burner		Appelez-nous	-
18	W10086560		Burner, Oven		Appelez-nous	-
19	WPW10206112		Pilot, Thermostat   (Replaces: W10206112)				$ 64.71
21	98007116		Sleeve, 3/16 Ball		Appelez-nous	-
22	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 12.62
23	W10212101		Spreader, Flame				$ 68.22
24	98007410		Bracket, Regulator		Appelez-nous	-
	98011072		Washer, Cut-off		Appelez-nous	-
	W10207846		Lp Spud Kit (for Use With Lp)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
